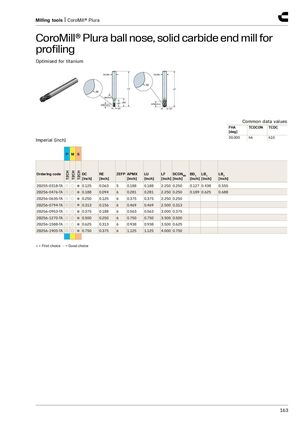

Milling tools | CoroMill® Plura CoroMill® Plura ball nose, solid carbide end mill for profiling​​ Optimised for titanium DCON DCON RE LF LF RE BHTA2 LB1 LB2 APMX/LU APMX/LU DC DC Common data values FHA TCDCON TCDC [deg] 30.000 h6 h10 Imperial (inch) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS BD 1 LB 1 _ _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2B255-0318-TA ○ ○ ● 0.125 0.063 5 0.188 0.188 2.250 0.250 0.127 0.438 0.555 2B256-0476-TA ○ ○ ● 0.188 0.094 6 0.281 0.281 2.250 0.250 0.189 0.625 0.688 2B256-0635-TA ○ ○ ● 0.250 0.125 6 0.375 0.375 2.250 0.250 2B256-0794-TA ○ ○ ● 0.313 0.156 6 0.469 0.469 2.500 0.313 2B256-0953-TA ○ ○ ● 0.375 0.188 6 0.563 0.563 3.000 0.375 2B256-1270-TA ○ ○ ● 0.500 0.250 6 0.750 0.750 3.500 0.500 2B256-1588-TA ○ ○ ● 0.625 0.313 6 0.938 0.938 3.500 0.625 2B256-1905-TA ○ ○ ● 0.750 0.375 6 1.125 1.125 4.000 0.750 ● = First choice ○ = Good choice 163
