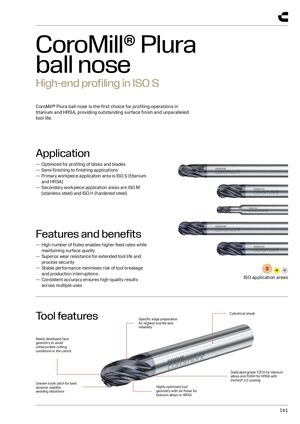

CoroMill® Plura ball nose High-end profiling in ISO S CoroMill® Plura ball nose is the first choice for profiling operations in titanium and HRSA, providing outstanding surface finish and unparalleled tool life. Application — Optimized for profiling of blisks and blades — Semi-finishing to finishing applications — Primary workpiece application area is ISO S (titanium and HRSA) — Secondary workpiece application areas are ISO M (stainless steel) and ISO H (hardened steel) Features and benefits — High number of flutes enables higher feed rates while maintaining surface quality — Superior wear resistance for extended tool life and process security — Stable performance minimises risk of tool breakage and production interruptions — Consistent accuracy ensures high-quality results ISO application areas across multiple uses Tool features Specific edge preparation for highest tool life and Cylindrical shank reliability Newly developed face geometry to avoid unfavourable cutting conditions in the centre Dedicated grade T2CH for titanium alloys and R2AH for HRSA with Zertivo® 2.0 coating Uneven tooth pitch for best dynamic stability Highly optimized tool avoiding vibrations geometry with six flutes for titanium alloys or HRSA 161
