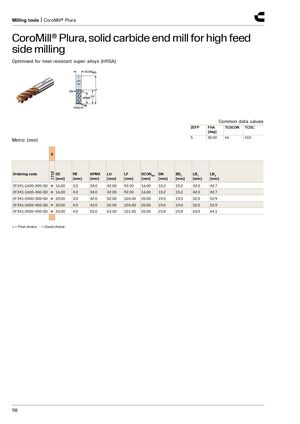

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ Optimised for heat resistant super alloys (HRSA) Common data values ZEFP FHA TCDCON TCDC [deg] 5 42.00 h6 h10 Metric (mm) S 1710 Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F341-1600-300-SD ● 16.00 3.0 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F341-1600-400-SD ● 16.00 4.0 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F341-2000-300-SD ● 20.00 3.0 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2F341-2000-400-SD ● 20.00 4.0 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2F341-2500-400-SD ● 25.00 4.0 52.0 63.00 121.00 25.00 23.8 23.8 63.0 64.1 ● = First choice ○ = Good choice 98
