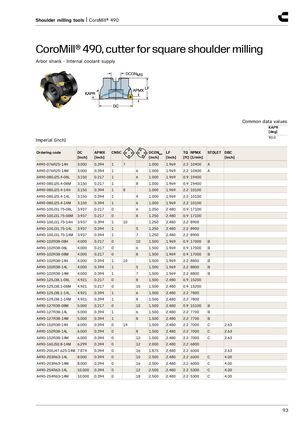

CoroMill® 490, cutter for square shoulder milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Imperial (inch) 90.0
| Ordering code | DC [inch] | APMX [inch] | CNS | C | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | DBC [inch] | |
| A490-076R25-14H | 3.000 | 0.394 | 1 | 7 | 1.000 | 1.969 | 2.2 10400 | A | ||
| A490-076R25-14M | 3.000 | 0.394 | 1 | 6 | 1.000 | 1.969 | 2.2 10400 | A | ||
| A490-080J25.4-08L | 3.150 | 0.217 | 1 | 6 | 1.000 | 1.969 | 0.9 19400 | |||
| A490-080J25.4-08M | 3.150 | 0.217 | 1 | 8 | 1.000 | 1.969 | 0.9 19400 | |||
| A490-080J25.4-14H | 3.150 | 0.394 | 1 | 8 | 1.000 | 1.969 | 2.2 10100 | |||
| A490-080J25.4-14L | 3.150 | 0.394 | 1 | 4 | 1.000 | 1.969 | 2.2 10100 | |||
| A490-080J25.4-14M | 3.150 | 0.394 | 1 | 6 | 1.000 | 1.969 | 2.2 10100 | |||
| A490-100J31.75-08L | 3.937 | 0.217 | 0 | 6 | 1.250 | 2.480 | 0.9 17100 | |||
| A490-100J31.75-08M | 3.937 | 0.217 | 0 | 8 | 1.250 | 2.480 | 0.9 17100 | |||
| A490-100J31.75-14H | 3.937 | 0.394 | 1 | 10 | 1.250 | 2.480 | 2.2 8900 | |||
| A490-100J31.75-14L | 3.937 | 0.394 | 1 | 5 | 1.250 | 2.480 | 2.2 8900 | |||
| A490-100J31.75-14M | 3.937 | 0.394 | 1 | 7 | 1.250 | 2.480 | 2.2 8900 | |||
| A490-102R38-08H | 4.000 | 0.217 | 0 | 10 | 1.500 | 1.969 | 0.9 17000 | B | ||
| A490-102R38-08L | 4.000 | 0.217 | 0 | 6 | 1.500 | 1.969 | 0.9 17000 | B | ||
| A490-102R38-08M | 4.000 | 0.217 | 0 | 8 | 1.500 | 1.969 | 0.9 17000 | B | ||
| A490-102R38-14H | 4.000 | 0.394 | 1 | 10 | 1.500 | 1.969 | 2.2 8800 | B | ||
| A490-102R38-14L | 4.000 | 0.394 | 1 | 5 | 1.500 | 1.969 | 2.2 8800 | B | ||
| A490-102R38-14M | 4.000 | 0.394 | 1 | 7 | 1.500 | 1.969 | 2.2 8800 | B | ||
| A490-125J38.1-08L | 4.921 | 0.217 | 0 | 8 | 1.500 | 2.480 | 0.9 15200 | |||
| A490-125J38.1-08M | 4.921 | 0.217 | 0 | 10 | 1.500 | 2.480 | 0.9 15200 | |||
| A490-125J38.1-14L | 4.921 | 0.394 | 1 | 6 | 1.500 | 2.480 | 2.2 7800 | |||
| A490-125J38.1-14M | 4.921 | 0.394 | 1 | 8 | 1.500 | 2.480 | 2.2 7800 | |||
| A490-127R38-08M | 5.000 | 0.217 | 0 | 10 | 1.500 | 2.480 | 0.9 15100 | B | ||
| A490-127R38-14L | 5.000 | 0.394 | 1 | 6 | 1.500 | 2.480 | 2.2 7700 | B | ||
| A490-127R38-14M | 5.000 | 0.394 | 1 | 8 | 1.500 | 2.480 | 2.2 7700 | B | ||
| A490-152R38-14H | 6.000 | 0.394 | 0 | 14 | 1.500 | 2.480 | 2.2 7000 | C | 2.63 | |
| A490-152R38-14L | 6.000 | 0.394 | 0 | 8 | 1.500 | 2.480 | 2.2 7000 | C | 2.63 | |
| A490-152R38-14M | 6.000 | 0.394 | 0 | 12 | 1.500 | 2.480 | 2.2 7000 | C | 2.63 | |
| A490-160J50.8-14M | 6.299 | 0.394 | 0 | 12 | 2.000 | 2.480 | 2.2 6800 | |||
| A490-200J47.625-14M | 7.874 | 0.394 | 0 | 16 | 1.875 | 2.480 | 2.2 6000 | 2.63 | ||
| A490-203R63-14L | 8.000 | 0.394 | 0 | 10 | 2.500 | 2.480 | 2.2 6000 | C | 4.00 | |
| A490-203R63-14M | 8.000 | 0.394 | 0 | 16 | 2.500 | 2.480 | 2.2 6000 | C | 4.00 | |
| A490-254R63-14L | 10.000 | 0.394 | 0 | 12 | 2.500 | 2.480 | 2.2 5300 | C | 4.00 | |
| A490-254R63-14M | 10.000 | 0.394 | 0 | 18 | 2.500 | 2.480 | 2.2 5300 | C | 4.00 |
