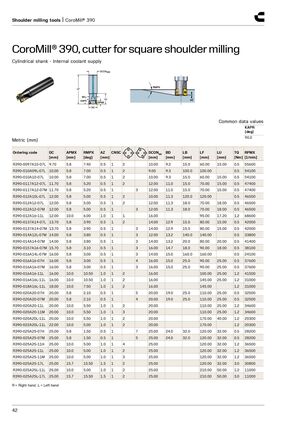

Плечевые фрезы | CoroMill® 390
CoroMill® 390 — фреза для квадратного плечевого фрезерования с цилиндрическим хвостовиком и внутренним подводом охлаждающей жидкости
| Код заказа | DC [мм] | APMX [мм] | RMPX [°] | AZ [мм] | CNSC | DCONMS [мм] | BD [мм] | LB [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R390-0097A10-07L | 9.70 | 5.8 | 7.40 | 0.5 | 1 | 10.00 | 9.2 | 15.0 | 60.00 | 15.00 | 0.5 | 55600 |
| R390-010A09L-07L | 10.00 | 5.8 | 7.00 | 0.5 | 1 | 9.00 | 9.3 | 100.0 | 100.00 | — | 0.5 | 54100 |
| R390-010A10-07L | 10.00 | 5.8 | 7.00 | 0.5 | 1 | 10.00 | 9.3 | 15.0 | 60.00 | 15.00 | 0.5 | 54100 |
| R390-0117A12-07L | 11.70 | 5.8 | 5.20 | 0.5 | 1 | 12.00 | 11.0 | 15.0 | 70.00 | 15.00 | 0.5 | 47400 |
| R390-0117A12-07M | 11.70 | 5.8 | 5.20 | 0.5 | 1 | 12.00 | 11.0 | 15.0 | 70.00 | 15.00 | 0.5 | 47400 |
| R390-012A10L-07L | 12.00 | 5.8 | 5.00 | 0.5 | 1 | 10.00 | 11.3 | 120.0 | 120.00 | — | 0.5 | 46500 |
| R390-012A12-07L | 12.00 | 5.8 | 5.00 | 0.5 | 1 | 12.00 | 11.3 | 18.0 | 70.00 | 18.00 | 0.5 | 46500 |
| R390-012A12-07M | 12.00 | 5.8 | 5.00 | 0.5 | 1 | 12.00 | 11.3 | 18.0 | 70.00 | 18.00 | 0.5 | 46500 |
| R390-012A16-11L | 12.00 | 10.0 | 6.00 | 1.0 | 1 | 16.00 | — | — | 95.00 | 17.20 | 1.2 | 68600 |
| R390-0137A14-07L | 13.70 | 5.8 | 3.90 | 0.5 | 1 | 14.00 | 12.9 | 15.0 | 80.00 | 15.00 | 0.5 | 42000 |
| R390-0137A14-07M | 13.70 | 5.8 | 3.90 | 0.5 | 1 | 14.00 | 12.9 | 15.0 | 80.00 | 15.00 | 0.5 | 42000 |
| R390-014A12L-07M | 14.00 | 5.8 | 3.80 | 0.5 | 1 | 12.00 | 13.2 | 140.0 | 140.00 | — | 0.5 | 33800 |
| R390-014A14-07M | 14.00 | 5.8 | 3.80 | 0.5 | 1 | 14.00 | 13.2 | 20.0 | 80.00 | 20.00 | 0.5 | 41400 |
| R390-0157A16-07M | 15.70 | 5.8 | 3.10 | 0.5 | 1 | 16.00 | 14.7 | 18.0 | 90.00 | 18.00 | 0.5 | 38100 |
| R390-016A14L-07M | 16.00 | 5.8 | 3.00 | 0.5 | 1 | 14.00 | 15.0 | 160.0 | 160.00 | — | 0.5 | 24100 |
| R390-016A16-07H | 16.00 | 5.8 | 3.00 | 0.5 | 1 | 16.00 | 15.0 | 25.0 | 90.00 | 25.00 | 0.5 | 37600 |
| R390-016A16-07M | 16.00 | 5.8 | 3.00 | 0.5 | 1 | 16.00 | 15.0 | 25.0 | 90.00 | 25.00 | 0.5 | 37600 |
| R390-016A16-11L | 16.00 | 10.0 | 10.50 | 1.0 | 1 | 16.00 | — | — | 100.00 | 25.00 | 1.2 | 41500 |
| R390-016A16L-11L | 16.00 | 10.0 | 10.50 | 1.0 | 1 | 16.00 | — | — | 145.00 | 25.00 | 1.2 | 31000 |
| R390-018A16L-11L | 18.00 | 10.0 | 7.50 | 1.0 | 1 | 16.00 | — | — | 145.00 | — | 1.2 | 31000 |
| R390-020A20-07H | 20.00 | 5.8 | 2.10 | 0.5 | 1 | 20.00 | 19.0 | 25.0 | 110.00 | 25.00 | 0.5 | 32500 |
| R390-020A20-07M | 20.00 | 5.8 | 2.10 | 0.5 | 1 | 20.00 | 19.0 | 25.0 | 110.00 | 25.00 | 0.5 | 32500 |
| R390-020A20-11L | 20.00 | 10.0 | 5.50 | 1.0 | 1 | 20.00 | — | — | 110.00 | 25.00 | 1.2 | 34600 |
| R390-020A20-11M | 20.00 | 10.0 | 5.50 | 1.0 | 1 | 20.00 | — | — | 110.00 | 25.00 | 1.2 | 34600 |
| R390-020A20L-11L | 20.00 | 10.0 | 5.50 | 1.0 | 1 | 20.00 | — | — | 170.00 | 40.00 | 1.2 | 20300 |
| R390-022A20L-11L | 22.00 | 10.0 | 5.00 | 1.0 | 1 | 20.00 | — | — | 170.00 | — | 1.2 | 20300 |
| R390-025A25-07H | 25.00 | 5.8 | 1.50 | 0.5 | 1 | 25.00 | 24.0 | 32.0 | 120.00 | 32.00 | 0.5 | 28200 |
| R390-025A25-07M | 25.00 | 5.8 | 1.50 | 0.5 | 1 | 25.00 | 24.0 | 32.0 | 120.00 | 32.00 | 0.5 | 28200 |
| R390-025A25-11H | 25.00 | 10.0 | 5.00 | 1.0 | 1 | 25.00 | — | — | 120.00 | 32.00 | 1.2 | 36500 |
| R390-025A25-11L | 25.00 | 10.0 | 5.00 | 1.0 | 1 | 25.00 | — | — | 120.00 | 32.00 | 1.2 | 36500 |
| R390-025A25-11M | 25.00 | 10.0 | 5.00 | 1.0 | 1 | 25.00 | — | — | 120.00 | 32.00 | 1.2 | 36500 |
| R390-025A25-17L | 25.00 | 15.7 | 15.50 | 1.5 | 1 | 25.00 | — | — | 120.00 | 32.00 | 3.0 | 30800 |
| R390-025A25L-11L | 25.00 | 10.0 | 5.00 | 1.0 | 1 | 25.00 | — | — | 210.00 | 50.00 | 1.2 | 11000 |
| R390-025A25L-17L | 25.00 | 15.7 | 15.50 | 1.5 | 1 | 25.00 | — | — | 210.00 | 50.00 | 3.0 | 11000 |
R = правое вращение, L = левое вращение
