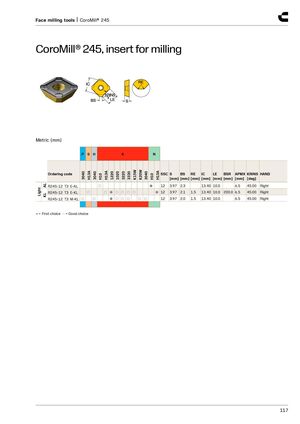

Face milling tools | CoroMill® 245 CoroMill® 245, insert for milling Metric (mm) P S H K N K15W K20W H13A H13A H13A 3040 3040 1220 1020 3220 3330 3040 Ordering code SSC S BS RE IC LE BSR APMX KRINS HAND H10 H10 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] ○ ● AL R245-12 T3 E-AL 12 3.97 2.3 13.40 10.0 6.5 45.00 Right Light R245-12 T3 E-KL ○ ○●○○○○ ● 12 3.97 2.1 1.5 13.40 10.0 200.0 6.5 45.00 Right KL R245-12 T3 M-KL ○ ○ ●○○○ ○○ 12 3.97 2.0 1.5 13.40 10.0 6.5 45.00 Right ● = First choice ○ = Good choice 117
