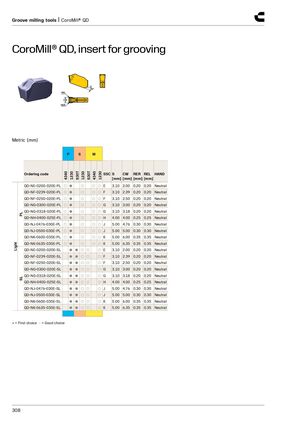

CoroMill® QD, insert for grooving
Metric (mm)
| P | S | M | ||||||||||||
| Ordering code | 4340 | 1230 | S30T | 1230 | S30T | 4340 | 1230 | SSC | S [mm] | CW [mm] | RER [mm] | REL [mm] | HAND | |
| QD-NE-0200-020E-PL | ○ | ● | ○ | ○ | ○ | E | 3.10 | 2.00 | 0.20 | 0.20 | Neutral | |||
| QD-NF-0239-020E-PL | ○ | ● | ○ | ○ | ○ | F | 3.10 | 2.39 | 0.20 | 0.20 | Neutral | |||
| QD-NF-0250-020E-PL | ○ | ● | ○ | ○ | ○ | F | 3.10 | 2.50 | 0.20 | 0.20 | Neutral | |||
| QD-NG-0300-020E-PL | ○ | ● | ○ | ○ | ○ | G | 3.10 | 3.00 | 0.20 | 0.20 | Neutral | |||
| PL | QD-NG-0318-020E-PL | ○ | ● | ○ | ○ | ○ | G | 3.10 | 3.18 | 0.20 | 0.20 | Neutral | ||
| QD-NH-0400-025E-PL | ○ | ● | ○ | ○ | ○ | H | 4.00 | 4.00 | 0.25 | 0.25 | Neutral | |||
| QD-NJ-0476-030E-PL | ○ | ● | ○ | ○ | ○ | J | 5.00 | 4.76 | 0.30 | 0.30 | Neutral | |||
| QD-NJ-0500-030E-PL | ○ | ● | ○ | ○ | ○ | J | 5.00 | 5.00 | 0.30 | 0.30 | Neutral | |||
| QD-NK-0600-035E-PL | ○ | ● | ○ | ○ | ○ | K | 5.00 | 6.00 | 0.35 | 0.35 | Neutral | |||
| ght | QD-NK-0635-035E-PL | ○ | ● | ○ | ○ | ○ | K | 5.00 | 6.35 | 0.35 | 0.35 | Neutral | ||
| Li | QD-NE-0200-020E-SL | ● | ● | ○ | ○ | ○ | E | 3.10 | 2.00 | 0.20 | 0.20 | Neutral | ||
| QD-NF-0239-020E-SL | ● | ● | ○ | ○ | ○ | F | 3.10 | 2.39 | 0.20 | 0.20 | Neutral | |||
| QD-NF-0250-020E-SL | ● | ● | ○ | ○ | ○ | F | 3.10 | 2.50 | 0.20 | 0.20 | Neutral | |||
| QD-NG-0300-020E-SL | ● | ● | ○ | ○ | ○ | G | 3.10 | 3.00 | 0.20 | 0.20 | Neutral | |||
| L | QD-NG-0318-020E-SL | ● | ● | ○ | ○ | ○ | G | 3.10 | 3.18 | 0.20 | 0.20 | Neutral | ||
| S | QD-NH-0400-025E-SL | ● | ● | ○ | ○ | ○ | H | 4.00 | 4.00 | 0.25 | 0.25 | Neutral | ||
| QD-NJ-0476-030E-SL | ● | ● | ○ | ○ | ○ | J | 5.00 | 4.76 | 0.30 | 0.30 | Neutral | |||
| QD-NJ-0500-030E-SL | ● | ● | ○ | ○ | ○ | J | 5.00 | 5.00 | 0.30 | 0.30 | Neutral | |||
| QD-NK-0600-035E-SL | ● | ● | ○ | ○ | ○ | K | 5.00 | 6.00 | 0.35 | 0.35 | Neutral | |||
| QD-NK-0635-035E-SL | ● | ● | ○ | ○ | ○ | K | 5.00 | 6.35 | 0.35 | 0.35 | Neutral |
- = First choice = Good choice
