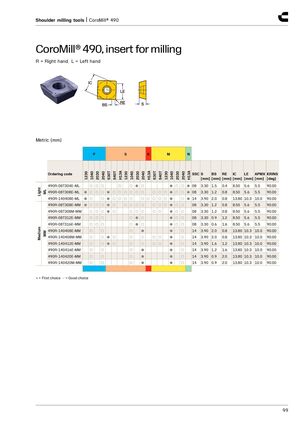

CoroMill® 490, insert for milling
R = Right hand, L = Left hand
Metric (mm)
| P | S | K | M | N | ||||||||||||
| Ordering code | 1230 1040 | 2030 2040 S30T S40T | H13A 1230 1040 | 2030 2040 | H13A S30T S40T | 1230 1040 | 2030 2040 | H13A SSC | S [mm] | BS [mm] | RE [mm | ] IC [mm] | LE [mm] | APMX [mm] | KRINS [deg] | |
| t | 490R-08T304E-ML | ○ | ○○ | ○ ○ | ●○ | ● | ○○ | ●08 | 3.30 | 1.5 | 0.4 | 8.50 | 5.6 | 5.5 | 90.00 | |
| Ligh ML | 490R-08T308E-ML | ●○ | ○○●○ | ○○○ | ○○ | ○○ | ○● | ○○ | ●08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | 5.5 | 90.00 |
| 490R-140408E-ML | ●○ | ○●○ | ○○○ | ○ | ○○○ | ○● | ○ | ●14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 | 10.0 | 90.00 | |
| 490R-08T308E-MM | ●○ | ○○●○ | ○○ | ○○ | ○○ | ○● | ○○ | 08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | 5.5 | 90.00 | |
| 490R-08T308M-MM | ○ | ○○●○ | ○ | ○○ | ○○ | ● | ○○ | 08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | 5.5 | 90.00 | |
| 490R-08T312E-MM | ○ | ○○ | ○ | ●○ | ● | ○○ | 08 | 3.30 | 0.9 | 1.2 | 8.50 | 5.6 | 5.5 | 90.00 | ||
| 490R-08T316E-MM | ○ | ○○ | ○ | ●○ | ● | ○○ | 08 | 3.30 | 0.6 | 1.6 | 8.50 | 5.6 | 5.5 | 90.00 | ||
| ium M | 490R-140408E-MM | ○ | ○ | ○ | ● | ● | ○ | 14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 | 10.0 | 90.00 | |
| Med M | 490R-140408M-MM | ○ | ○●○ | ○ | ○ | ○○ | ● | ○ | 14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 | 10.0 | 90.00 |
| 490R-140412E-MM | ○ | ○●○ | ○ | ○ | ○○ | ● | ○ | 14 | 3.90 | 1.6 | 1.2 | 13.80 | 10.3 | 10.0 | 90.00 | |
| 490R-140416E-MM | ○ | ○ | ○ | ● | ● | ○ | 14 | 3.90 | 1.2 | 1.6 | 13.80 | 10.3 | 10.0 | 90.00 | ||
| 490R-140420E-MM | ○ | ○ | ○ | ● | ● | ○ | 14 | 3.90 | 0.9 | 2.0 | 13.80 | 10.3 | 10.0 | 90.00 | ||
| 490R-140420M-MM | ○ | ○ | ○ | ● | ● | ○ | 14 | 3.90 | 0.9 | 2.0 | 13.80 | 10.3 | 10.0 | 90.00 |
- = First choice = Good choice
