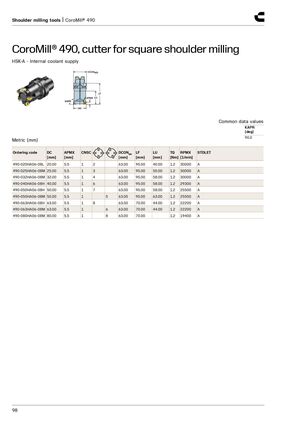

CoroMill® 490, cutter for square shoulder milling
HSK-A - Internal coolant supply
Common data values
| KAPR [deg] |
| 90.0 |
| Ordering code | DC [mm] | APMX [mm] | CNS | C | DCONMS [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| 490-020HA06-08L | 20.00 | 5.5 | 1 | 2 | 63.00 | 95.00 | 40.00 | 1.2 | 30000 | A | |
| 490-025HA06-08M | 25.00 | 5.5 | 1 | 3 | 63.00 | 95.00 | 50.00 | 1.2 | 30000 | A | |
| 490-032HA06-08M | 32.00 | 5.5 | 1 | 4 | 63.00 | 95.00 | 58.00 | 1.2 | 30000 | A | |
| 490-040HA06-08H | 40.00 | 5.5 | 1 | 6 | 63.00 | 95.00 | 58.00 | 1.2 | 29300 | A | |
| 490-050HA06-08H | 50.00 | 5.5 | 1 | 7 | 63.00 | 95.00 | 58.00 | 1.2 | 25500 | A | |
| 490-050HA06-08M | 50.00 | 5.5 | 1 | 5 | 63.00 | 95.00 | 63.00 | 1.2 | 25500 | A | |
| 490-063HA06-08H | 63.00 | 5.5 | 1 | 8 | 63.00 | 70.00 | 44.00 | 1.2 | 22200 | A | |
| 490-063HA06-08M | 63.00 | 5.5 | 1 | 6 | 63.00 | 70.00 | 44.00 | 1.2 | 22200 | A | |
| 490-080HA06-08M | 80.00 | 5.5 | 1 | 8 | 63.00 | 70.00 | 1.2 | 19400 | A |
