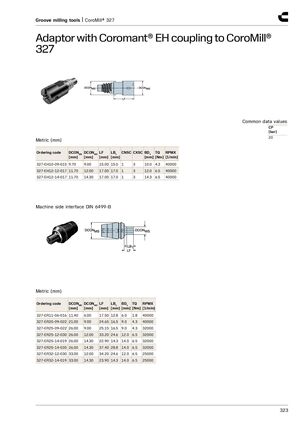

Adaptor with Coromant® EH coupling to CoroMill®
327
Common data values
CP [bar] Metric (mm) 20
| Ordering code | DCONMS [mm] | DCONWS [mm] | LF [mm] | LB1 [mm] | CNSC | CXSC | BD1 [mm] | TQ [Nm] | RPMX [1/min] |
| 327-EH10-09-015 | 9.70 | 9.00 | 15.00 | 15.0 | 1 | 3 | 10.0 | 4.3 | 40000 |
| 327-EH12-12-017 | 11.70 | 12.00 | 17.00 | 17.0 | 1 | 3 | 12.0 | 6.5 | 40000 |
| 327-EH12-14-017 | 11.70 | 14.30 | 17.00 | 17.0 | 1 | 3 | 14.3 | 6.5 | 40000 |
Machine side interface DIN 6499-B
Metric (mm)
| Ordering code | DCONMS [mm] | DCONWS [mm] | LF [mm] | LB1 [mm] | BD1 [mm] | TQ [Nm] | RPMX [1/min] |
| 327-ER11-06-016 | 11.40 | 6.00 | 17.50 | 12.8 | 6.0 | 1.8 | 40000 |
| 327-ER20-09-022 | 21.00 | 9.00 | 24.65 | 16.5 | 9.0 | 4.3 | 40000 |
| 327-ER25-09-022 | 26.00 | 9.00 | 25.15 | 16.5 | 9.0 | 4.3 | 32000 |
| 327-ER25-12-030 | 26.00 | 12.00 | 33.20 | 24.6 | 12.0 | 6.5 | 32000 |
| 327-ER25-14-019 | 26.00 | 14.30 | 22.90 | 14.3 | 14.0 | 6.5 | 32000 |
| 327-ER25-14-035 | 26.00 | 14.30 | 37.40 | 28.8 | 14.0 | 6.5 | 32000 |
| 327-ER32-12-030 | 33.00 | 12.00 | 34.20 | 24.6 | 12.0 | 6.5 | 25000 |
| 327-ER32-14-019 | 33.00 | 14.30 | 23.90 | 14.3 | 14.0 | 6.5 | 25000 |
