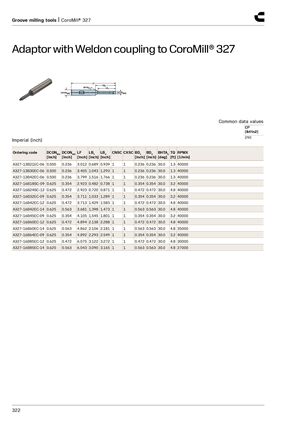

Adaptor with Weldon coupling to CoroMill® 327
Common data values
| mperial (inch) | CP [lbf/in2] 290 | |||||||||
| Ordering code | DCONMS [inch] | DCONWS [inch] | LF [inch] LB1 [inch] LB2 [inch] | CNS | C CXSC | BD1 [inch] | BD2 [inch] | BHTA2 [deg] | TQ [ft] RPMX [1/min] | |
| A327-13B21EC-06 | 0.500 | 0.236 | 3.012 0.689 0.939 | 1 | 1 | 0.236 | 0.236 | 30.0 | 1.3 40000 | |
| A327-13B30EC-06 | 0.500 | 0.236 | 3.405 1.043 1.293 | 1 | 1 | 0.236 | 0.236 | 30.0 | 1.3 40000 | |
| A327-13B42EC-06 | 0.500 | 0.236 | 3.799 1.516 1.766 | 1 | 1 | 0.236 | 0.236 | 30.0 | 1.3 40000 | |
| A327-16B18SC-09 | 0.625 | 0.354 | 2.923 0.482 0.738 | 1 | 1 | 0.354 | 0.354 | 30.0 | 3.2 40000 | |
| A327-16B24SC-12 | 0.625 | 0.472 | 2.923 0.720 0.871 | 1 | 1 | 0.472 | 0.472 | 30.0 | 4.8 40000 | |
| A327-16B32EC-09 | 0.625 | 0.354 | 3.711 1.033 1.289 | 1 | 1 | 0.354 | 0.354 | 30.0 | 3.2 40000 | |
| A327-16B42EC-12 | 0.625 | 0.472 | 3.713 1.429 1.583 | 1 | 1 | 0.472 | 0.472 | 30.0 | 4.8 40000 | |
| A327-16B42EC-14 | 0.625 | 0.563 | 3.681 1.398 1.473 | 1 | 1 | 0.563 | 0.563 | 30.0 | 4.8 40000 | |
| A327-16B45EC-09 | 0.625 | 0.354 | 4.105 1.545 1.801 | 1 | 1 | 0.354 | 0.354 | 30.0 | 3.2 40000 | |
| A327-16B60EC-12 | 0.625 | 0.472 | 4.894 2.138 2.288 | 1 | 1 | 0.472 | 0.472 | 30.0 | 4.8 40000 | |
| A327-16B60EC-14 | 0.625 | 0.563 | 4.862 2.106 2.181 | 1 | 1 | 0.563 | 0.563 | 30.0 | 4.8 35000 | |
| A327-16B64EC-09 | 0.625 | 0.354 | 4.892 2.293 2.549 | 1 | 1 | 0.354 | 0.354 | 30.0 | 3.2 40000 | |
| A327-16B85EC-12 | 0.625 | 0.472 | 6.075 3.122 3.272 | 1 | 1 | 0.472 | 0.472 | 30.0 | 4.8 30000 | |
| A327-16B85EC-14 | 0.625 | 0.563 | 6.043 3.090 3.165 | 1 | 1 | 0.563 | 0.563 | 30.0 | 4.8 27000 |
