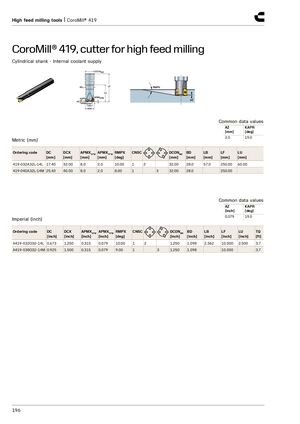

CoroMill® 419, cutter for high feed milling
Cylindrical shank - Internal coolant supply
| Common | data values | |||||||||||
| AZ [mm] | KAPR [deg] | |||||||||||
| Metric (mm) | 2.0 | 19.0 | ||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFFW [mm] | RMPX [deg] | CNSC | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | LU [mm] | |
| 419-032A32L-14L | 17.40 | 32.00 | 8.0 | 2.0 | 10.00 | 1 2 | 32.00 | 28.0 | 57.0 | 250.00 | 60.00 | |
| 419-040A32L-14M | 25.40 | 40.00 | 8.0 | 2.0 | 8.00 | 1 | 3 | 32.00 | 28.0 | 250.00 |
| Common | data v | alues | |||||||||||
| AZ [inch] | KAP [deg | R ] | |||||||||||
| mperial (inch) | 0.079 | 19.0 | |||||||||||
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFFW [inch] | RMPX [deg] | CNSC | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] | |
| A419-032O32-14L | 0.673 | 1.250 | 0.315 | 0.079 | 10.00 | 1 2 | 1.250 | 1.098 | 2.362 | 10.000 | 2.500 | 3.7 | |
| A419-038O32-14M | 0.925 | 1.500 | 0.315 | 0.079 | 9.00 | 1 | 3 | 1.250 | 1.098 | 10.000 | 3.7 |
