Инструменты для торцевого фрезерования | CoroMill® 390

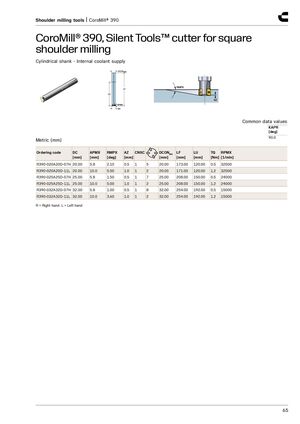

CoroMill® 390 Silent Tools™, резец для фрезеровки квадратных торцевых канавок
Цилиндрический хвостовик - Внутренняя подача смазочно-охлаждающей жидкости
Общие значения данных: KAPR = 90,0°
Метрические размеры (мм)
| Обозначение заказа | DC [мм] | APMX [мм] | RMPX [°] | AZ [мм] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R390-020A20D-07H | 20,00 | 5,8 | 2,10 | 0,5 | 1 | 5 | 20,00 | 173,00 | 120,00 | 0,5 | 32500 |
| R390-020A20D-11L | 20,00 | 10,0 | 5,50 | 1,0 | 1 | 2 | 20,00 | 171,00 | 120,00 | 1,2 | 32500 |
| R390-025A25D-07H | 25,00 | 5,8 | 1,50 | 0,5 | 1 | 7 | 25,00 | 208,00 | 150,00 | 0,5 | 24000 |
| R390-025A25D-11L | 25,00 | 10,0 | 5,00 | 1,0 | 1 | 2 | 25,00 | 208,00 | 150,00 | 1,2 | 24000 |
| R390-032A32D-07H | 32,00 | 5,8 | 1,00 | 0,5 | 1 | 8 | 32,00 | 254,00 | 192,00 | 0,5 | 15000 |
| R390-032A32D-11L | 32,00 | 10,0 | 3,60 | 1,0 | 1 | 2 | 32,00 | 254,00 | 192,00 | 1,2 | 15000 |
R = правое исполнение, L = левое исполнение
