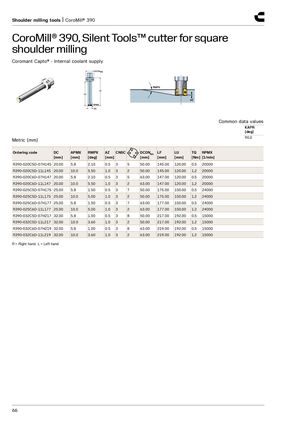

Инструменты для торцевого фрезерования | CoroMill® 390
CoroMill® 390 Silent Tools™, резец для фрезеровки квадратных торцевых канавок
Coromant Capto® - Внутренняя подача смазочно-охлаждающей жидкости
Общие значения данных: KAPR = 90,0°
Метрические размеры (мм)
| Обозначение заказа | DC [мм] | APMX [мм] | RMPX [°] | AZ [мм] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R390-020C5D-07H145 | 20,00 | 5,8 | 2,10 | 0,5 | 3 | 5 | 50,00 | 145,00 | 120,00 | 0,5 | 20000 |
| R390-020C5D-11L145 | 20,00 | 10,0 | 5,50 | 1,0 | 3 | 2 | 50,00 | 145,00 | 120,00 | 1,2 | 20000 |
| R390-020C6D-07H147 | 20,00 | 5,8 | 2,10 | 0,5 | 3 | 5 | 63,00 | 147,00 | 120,00 | 0,5 | 20000 |
| R390-020C6D-11L147 | 20,00 | 10,0 | 5,50 | 1,0 | 3 | 2 | 63,00 | 147,00 | 120,00 | 1,2 | 20000 |
| R390-025C5D-07H175 | 25,00 | 5,8 | 1,50 | 0,5 | 3 | 7 | 50,00 | 175,00 | 150,00 | 0,5 | 24000 |
| R390-025C5D-11L175 | 25,00 | 10,0 | 5,00 | 1,0 | 3 | 2 | 50,00 | 175,00 | 150,00 | 1,2 | 24000 |
| R390-025C6D-07H177 | 25,00 | 5,8 | 1,50 | 0,5 | 3 | 7 | 63,00 | 177,00 | 150,00 | 0,5 | 24000 |
| R390-025C6D-11L177 | 25,00 | 10,0 | 5,00 | 1,0 | 3 | 2 | 63,00 | 177,00 | 150,00 | 1,2 | 24000 |
| R390-032C5D-07H217 | 32,00 | 5,8 | 1,00 | 0,5 | 3 | 8 | 50,00 | 217,00 | 192,00 | 0,5 | 15000 |
| R390-032C5D-11L217 | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 2 | 50,00 | 217,00 | 192,00 | 1,2 | 15000 |
| R390-032C6D-07H219 | 32,00 | 5,8 | 1,00 | 0,5 | 3 | 8 | 63,00 | 219,00 | 192,00 | 0,5 | 15000 |
| R390-032C6D-11L219 | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 2 | 63,00 | 219,00 | 192,00 | 1,2 | 15000 |
R = правое исполнение, L = левое исполнение
