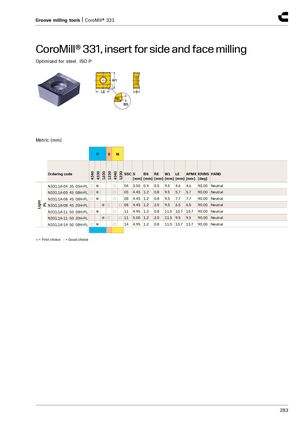

CoroMill® 331, insert for side and face milling
Optimised for steel, ISO P
Metric (mm)
| P | S M | |||||||||||
| Ordering code | 4340 4330 1230 | 1230 4340 | 1230 SSC | S [mm] | BS [mm | ] RE [mm] | W1 [mm] | LE [mm] | APMX [mm] | KRINS [deg] | HAND | |
| N331.1A-04 35 05H-PL | ○● | ○ | 04 | 3.50 | 0.4 | 0.5 | 9.5 | 4.6 | 4.6 | 90.00 | Neutral | |
| N331.1A-05 45 08H-PL | ○● | ○ | 05 | 4.45 | 1.2 | 0.8 | 9.5 | 5.7 | 5.7 | 90.00 | Neutral | |
| t | N331.1A-08 45 08H-PL | ○● | ○ | 08 | 4.45 | 1.2 | 0.8 | 9.5 | 7.7 | 7.7 | 90.00 | Neutral |
| Ligh PL | N331.1A-08 45 20H-PL | ● | ○ | ○08 | 4.45 | 1.2 | 2.0 | 9.5 | 6.5 | 6.5 | 90.00 | Neutral |
| N331.1A-11 50 08H-PL | ○● | ○ | 11 | 4.95 | 1.2 | 0.8 | 11.5 | 10.7 | 10.7 | 90.00 | Neutral | |
| N331.1A-11 50 20H-PL | ● | ○ | ○11 | 5.00 | 1.2 | 2.0 | 11.5 | 9.5 | 9.5 | 90.00 | Neutral | |
| N331.1A-14 50 08H-PL | ○● | ○ | 14 | 4.95 | 1.2 | 0.8 | 11.5 | 13.7 | 13.7 | 90.00 | Neutral |
- = First choice = Good choice
