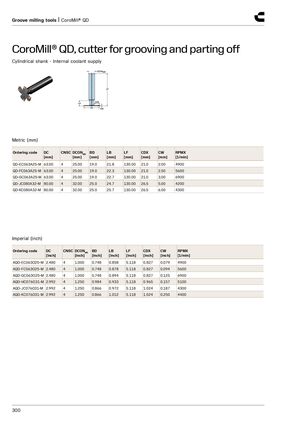

CoroMill® QD, cutter for grooving and parting off
Cylindrical shank - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | CNSC | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | CDX [mm] | CW [mm] | RPMX [1/min] |
| QD-EC063A25-M | 63.00 | 4 | 25.00 | 19.0 | 21.8 | 130.00 | 21.0 | 2.00 | 4900 |
| QD-FC063A25-M | 63.00 | 4 | 25.00 | 19.0 | 22.3 | 130.00 | 21.0 | 2.50 | 5600 |
| QD-GC063A25-M | 63.00 | 4 | 25.00 | 19.0 | 22.7 | 130.00 | 21.0 | 3.00 | 6900 |
| QD-JC080A32-M | 80.00 | 4 | 32.00 | 25.0 | 24.7 | 130.00 | 26.5 | 5.00 | 4200 |
| QD-KC080A32-M | 80.00 | 4 | 32.00 | 25.0 | 25.7 | 130.00 | 26.5 | 6.00 | 4300 |
Imperial (inch)
| Ordering code | DC [inch] | CNSC | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | CDX [inch] | CW [inch] | RPMX [1/min] |
| AQD-EC063O25-M | 2.480 | 4 | 1.000 | 0.748 | 0.858 | 5.118 | 0.827 | 0.079 | 4900 |
| AQD-FC063O25-M | 2.480 | 4 | 1.000 | 0.748 | 0.878 | 5.118 | 0.827 | 0.094 | 5600 |
| AQD-GC063O25-M | 2.480 | 4 | 1.000 | 0.748 | 0.894 | 5.118 | 0.827 | 0.125 | 6900 |
| AQD-HC076O31-M | 2.992 | 4 | 1.250 | 0.984 | 0.933 | 5.118 | 0.965 | 0.157 | 5100 |
| AQD-JC076O31-M | 2.992 | 4 | 1.250 | 0.866 | 0.972 | 5.118 | 1.024 | 0.187 | 4300 |
| AQD-KC076O31-M | 2.992 | 4 | 1.250 | 0.866 | 1.012 | 5.118 | 1.024 | 0.250 | 4400 |
