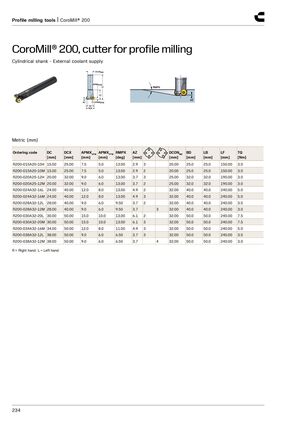

CoroMill® 200, cutter for profile milling
Cylindrical shank - External coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm] | ||
| R200-015A20-10H | 15.00 | 25.00 | 7.5 | 5.0 | 13.00 | 2.9 | 3 | 20.00 | 25.0 | 25.0 | 150.00 | 3.0 | |
| R200-015A20-10M | 15.00 | 25.00 | 7.5 | 5.0 | 13.00 | 2.9 | 2 | 20.00 | 25.0 | 25.0 | 150.00 | 3.0 | |
| R200-020A25-12H | 20.00 | 32.00 | 9.0 | 6.0 | 13.00 | 3.7 | 3 | 25.00 | 32.0 | 32.0 | 190.00 | 3.0 | |
| R200-020A25-12M | 20.00 | 32.00 | 9.0 | 6.0 | 13.00 | 3.7 | 2 | 25.00 | 32.0 | 32.0 | 190.00 | 3.0 | |
| R200-024A32-16L | 24.00 | 40.00 | 12.0 | 8.0 | 13.00 | 4.9 | 2 | 32.00 | 40.0 | 40.0 | 240.00 | 5.0 | |
| R200-024A32-16M | 24.00 | 40.00 | 12.0 | 8.0 | 13.00 | 4.9 | 3 | 32.00 | 40.0 | 40.0 | 240.00 | 5.0 | |
| R200-028A32-12L | 28.00 | 40.00 | 9.0 | 6.0 | 9.50 | 3.7 | 2 | 32.00 | 40.0 | 40.0 | 240.00 | 3.0 | |
| R200-028A32-12M | 28.00 | 40.00 | 9.0 | 6.0 | 9.50 | 3.7 | 3 | 32.00 | 40.0 | 40.0 | 240.00 | 3.0 | |
| R200-030A32-20L | 30.00 | 50.00 | 15.0 | 10.0 | 13.00 | 6.1 | 2 | 32.00 | 50.0 | 50.0 | 240.00 | 7.5 | |
| R200-030A32-20M | 30.00 | 50.00 | 15.0 | 10.0 | 13.00 | 6.1 | 3 | 32.00 | 50.0 | 50.0 | 240.00 | 7.5 | |
| R200-034A32-16M | 34.00 | 50.00 | 12.0 | 8.0 | 11.00 | 4.9 | 3 | 32.00 | 50.0 | 50.0 | 240.00 | 5.0 | |
| R200-038A32-12L | 38.00 | 50.00 | 9.0 | 6.0 | 6.50 | 3.7 | 3 | 32.00 | 50.0 | 50.0 | 240.00 | 3.0 | |
| R200-038A32-12M | 38.00 | 50.00 | 9.0 | 6.0 | 6.50 | 3.7 | 4 | 32.00 | 50.0 | 50.0 | 240.00 | 3.0 |
R = Right hand, L = Left hand
