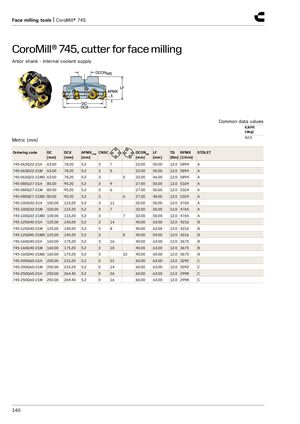

CoroMill® 745, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
| Metric (mm) | KAPR [deg] 42.0 | |||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | ||
| 745-063Q22-21H | 63.00 | 78.20 | 5.2 | 3 | 7 | 22.00 | 50.00 | 12.0 | 5894 | A | ||
| 745-063Q22-21M | 63.00 | 78.20 | 5.2 | 3 | 5 | 22.00 | 50.00 | 12.0 | 5894 | A | ||
| 745-063Q22-21MD | 63.00 | 78.20 | 5.2 | 3 | 5 | 22.00 | 46.00 | 12.0 | 5894 | A | ||
| 745-080Q27-21H | 80.00 | 95.20 | 5.2 | 3 | 9 | 27.00 | 50.00 | 12.0 | 5324 | A | ||
| 745-080Q27-21M | 80.00 | 95.20 | 5.2 | 3 | 6 | 27.00 | 50.00 | 12.0 | 5324 | A | ||
| 745-080Q27-21MD | 80.00 | 95.20 | 5.2 | 3 | 6 | 27.00 | 48.00 | 12.0 | 5324 | A | ||
| 745-100Q32-21H | 100.00 | 115.20 | 5.2 | 3 | 11 | 32.00 | 50.00 | 12.0 | 4765 | A | ||
| 745-100Q32-21M | 100.00 | 115.20 | 5.2 | 3 | 7 | 32.00 | 50.00 | 12.0 | 4765 | A | ||
| 745-100Q32-21MD | 100.00 | 115.20 | 5.2 | 3 | 7 | 32.00 | 50.00 | 12.0 | 4765 | A | ||
| 745-125Q40-21H | 125.00 | 140.20 | 5.2 | 3 | 14 | 40.00 | 63.00 | 12.0 | 4216 | B | ||
| 745-125Q40-21M | 125.00 | 140.20 | 5.2 | 3 | 8 | 40.00 | 63.00 | 12.0 | 4216 | B | ||
| 745-125Q40-21MD | 125.00 | 140.20 | 5.2 | 3 | 8 | 40.00 | 54.00 | 12.0 | 4216 | B | ||
| 745-160Q40-21H | 160.00 | 175.20 | 5.2 | 3 | 16 | 40.00 | 63.00 | 12.0 | 3675 | B | ||
| 745-160Q40-21M | 160.00 | 175.20 | 5.2 | 3 | 10 | 40.00 | 63.00 | 12.0 | 3675 | B | ||
| 745-160Q40-21MD | 160.00 | 175.20 | 5.2 | 3 | 10 | 40.00 | 60.00 | 12.0 | 3675 | B | ||
| 745-200Q60-21H | 200.00 | 215.20 | 5.2 | 0 | 21 | 60.00 | 63.00 | 12.0 | 3292 | C | ||
| 745-200Q60-21M | 200.00 | 215.20 | 5.2 | 0 | 14 | 60.00 | 63.00 | 12.0 | 3292 | C | ||
| 745-250Q60-21H | 250.00 | 264.40 | 5.2 | 0 | 26 | 60.00 | 63.00 | 12.0 | 2998 | C | ||
| 745-250Q60-21M | 250.00 | 264.40 | 5.2 | 0 | 16 | 60.00 | 63.00 | 12.0 | 2998 | C |
