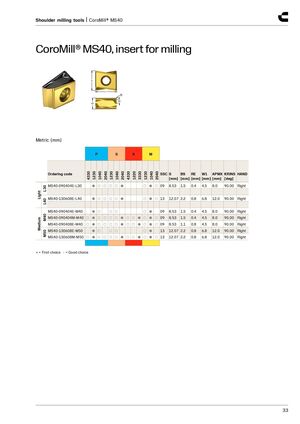

Shoulder milling tools | CoroMill® MS40 CoroMill® MS40, insert for milling S L RE BS W1 Metric (mm) P S K M 4330 1230 1040 2040 1230 1040 2040 4330 1220 3330 1230 1040 2040 Ordering code SSC S BS RE W1 APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [deg] MS40-090404E-L30 ●○○○○● ○ ● ○ 09 8.53 1.5 0.4 4.5 8.0 90.00 Right L30 Light MS40-130608E-L40 ●○○○○● ○ ● ○ 13 12.07 2.2 0.8 6.8 12.0 90.00 Right L40 MS40-090404E-M40 ●○ ○○ ○ ● 09 8.53 1.5 0.4 4.5 8.0 90.00 Right ○ ● ○ ○ ○ ○ ● ○ ○ ● ○ ● ○ 09 M40 MS40-090404M-M40 8.53 1.5 0.4 4.5 8.0 90.00 Right Medium MS40-090408E-M40 ○ ● ○ ○ ○ ○ ● ○ ○ ● ○ ● ○ 09 8.53 1.1 0.8 4.5 8.0 90.00 Right MS40-130608E-M50 ●○ ○○ ○ ● 13 12.07 2.2 0.8 6.8 12.0 90.00 Right M50 MS40-130608M-M50 ○ ● ○ ○ ○ ○ ● ○ ○ ● ○ ● ○ 13 12.07 2.2 0.8 6.8 12.0 90.00 Right ● = First choice ○ = Good choice 33
