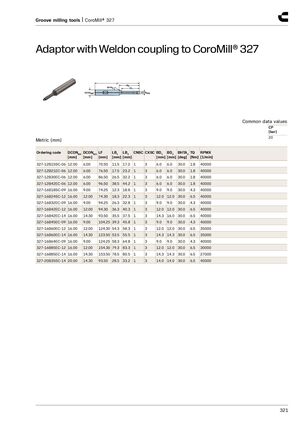

Adaptor with Weldon coupling to CoroMill® 327
Common data values
CP [bar] Metric (mm) 20
| Ordering code | DCONMS [mm] | DCONWS [mm] | LF [mm] | LB1 [mm] | LB2 [mm] | CNSC | CXSC | BD1 [mm] | BD2 [mm] | BHTA2 [deg] | TQ [Nm] | RPMX [1/min] |
| 327-12B15SC-06 | 12.00 | 6.00 | 70.50 | 11.5 | 17.2 | 1 | 3 | 6.0 | 6.0 | 30.0 | 1.8 | 40000 |
| 327-12B21EC-06 | 12.00 | 6.00 | 76.50 | 17.5 | 23.2 | 1 | 3 | 6.0 | 6.0 | 30.0 | 1.8 | 40000 |
| 327-12B30EC-06 | 12.00 | 6.00 | 86.50 | 26.5 | 32.2 | 1 | 3 | 6.0 | 6.0 | 30.0 | 1.8 | 40000 |
| 327-12B42EC-06 | 12.00 | 6.00 | 96.50 | 38.5 | 44.2 | 1 | 3 | 6.0 | 6.0 | 30.0 | 1.8 | 40000 |
| 327-16B18SC-09 | 16.00 | 9.00 | 74.25 | 12.3 | 18.8 | 1 | 3 | 9.0 | 9.0 | 30.0 | 4.3 | 40000 |
| 327-16B24SC-12 | 16.00 | 12.00 | 74.30 | 18.3 | 22.3 | 1 | 3 | 12.0 | 12.0 | 30.0 | 6.5 | 40000 |
| 327-16B32EC-09 | 16.00 | 9.00 | 94.25 | 26.3 | 32.8 | 1 | 3 | 9.0 | 9.0 | 30.0 | 4.3 | 40000 |
| 327-16B42EC-12 | 16.00 | 12.00 | 94.30 | 36.3 | 40.3 | 1 | 3 | 12.0 | 12.0 | 30.0 | 6.5 | 40000 |
| 327-16B42EC-14 | 16.00 | 14.30 | 93.50 | 35.5 | 37.5 | 1 | 3 | 14.3 | 16.0 | 30.0 | 6.5 | 40000 |
| 327-16B45EC-09 | 16.00 | 9.00 | 104.25 | 39.3 | 45.8 | 1 | 3 | 9.0 | 9.0 | 30.0 | 4.3 | 40000 |
| 327-16B60EC-12 | 16.00 | 12.00 | 124.30 | 54.3 | 58.3 | 1 | 3 | 12.0 | 12.0 | 30.0 | 6.5 | 35000 |
| 327-16B60EC-14 | 16.00 | 14.30 | 123.50 | 53.5 | 55.5 | 1 | 3 | 14.3 | 14.3 | 30.0 | 6.5 | 35000 |
| 327-16B64EC-09 | 16.00 | 9.00 | 124.25 | 58.3 | 64.8 | 1 | 3 | 9.0 | 9.0 | 30.0 | 4.3 | 40000 |
| 327-16B85EC-12 | 16.00 | 12.00 | 154.30 | 79.3 | 83.3 | 1 | 3 | 12.0 | 12.0 | 30.0 | 6.5 | 30000 |
| 327-16B85EC-14 | 16.00 | 14.30 | 153.50 | 78.5 | 80.5 | 1 | 3 | 14.3 | 14.3 | 30.0 | 6.5 | 27000 |
| 327-20B35SC-14 | 20.00 | 14.30 | 93.50 | 28.5 | 33.2 | 1 | 3 | 14.0 | 14.0 | 30.0 | 6.5 | 40000 |
