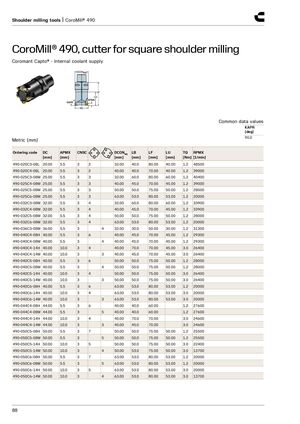

CoroMill® 490, cutter for square shoulder milling
Coromant Capto® - Internal coolant supply
Common data values
| KAPR [deg] |
| 90.0 |
| Ordering code | DC [mm] | APMX [mm] | CNS | C | DCONMS [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | |
| 490-020C3-08L | 20.00 | 5.5 | 3 | 2 | 32.00 | 40.0 | 80.00 | 40.00 | 1.2 | 48500 | |
| 490-020C4-08L | 20.00 | 5.5 | 3 | 2 | 40.00 | 40.0 | 70.00 | 40.00 | 1.2 | 39000 | |
| 490-025C3-08M | 25.00 | 5.5 | 3 | 3 | 32.00 | 60.0 | 80.00 | 60.00 | 1.2 | 40400 | |
| 490-025C4-08M | 25.00 | 5.5 | 3 | 3 | 40.00 | 45.0 | 70.00 | 45.00 | 1.2 | 39000 | |
| 490-025C5-08M | 25.00 | 5.5 | 3 | 3 | 50.00 | 50.0 | 75.00 | 50.00 | 1.2 | 28000 | |
| 490-025C6-08M | 25.00 | 5.5 | 3 | 3 | 63.00 | 53.0 | 80.00 | 53.00 | 1.2 | 20000 | |
| 490-032C3-08M | 32.00 | 5.5 | 3 | 4 | 32.00 | 60.0 | 80.00 | 60.00 | 1.2 | 33900 | |
| 490-032C4-08M | 32.00 | 5.5 | 3 | 4 | 40.00 | 45.0 | 70.00 | 45.00 | 1.2 | 33900 | |
| 490-032C5-08M | 32.00 | 5.5 | 3 | 4 | 50.00 | 50.0 | 75.00 | 50.00 | 1.2 | 28000 | |
| 490-032C6-08M | 32.00 | 5.5 | 3 | 4 | 63.00 | 53.0 | 80.00 | 53.00 | 1.2 | 20000 | |
| 490-036C3-08M | 36.00 | 5.5 | 3 | 4 | 32.00 | 30.0 | 50.00 | 30.00 | 1.2 | 31300 | |
| 490-040C4-08H | 40.00 | 5.5 | 3 | 6 | 40.00 | 45.0 | 70.00 | 45.00 | 1.2 | 29300 | |
| 490-040C4-08M | 40.00 | 5.5 | 3 | 4 | 40.00 | 45.0 | 70.00 | 45.00 | 1.2 | 29300 | |
| 490-040C4-14H | 40.00 | 10.0 | 3 | 4 | 40.00 | 70.0 | 70.00 | 45.00 | 3.0 | 26400 | |
| 490-040C4-14M | 40.00 | 10.0 | 3 | 3 | 40.00 | 45.0 | 70.00 | 45.00 | 3.0 | 26400 | |
| 490-040C5-08H | 40.00 | 5.5 | 3 | 6 | 50.00 | 50.0 | 75.00 | 50.00 | 1.2 | 28000 | |
| 490-040C5-08M | 40.00 | 5.5 | 3 | 4 | 50.00 | 50.0 | 75.00 | 50.00 | 1.2 | 28000 | |
| 490-040C5-14H | 40.00 | 10.0 | 3 | 4 | 50.00 | 50.0 | 75.00 | 50.00 | 3.0 | 26400 | |
| 490-040C5-14M | 40.00 | 10.0 | 3 | 3 | 50.00 | 50.0 | 75.00 | 50.00 | 3.0 | 26400 | |
| 490-040C6-08H | 40.00 | 5.5 | 3 | 6 | 63.00 | 53.0 | 80.00 | 53.00 | 1.2 | 20000 | |
| 490-040C6-14H | 40.00 | 10.0 | 3 | 4 | 63.00 | 53.0 | 80.00 | 53.00 | 3.0 | 20000 | |
| 490-040C6-14M | 40.00 | 10.0 | 3 | 3 | 63.00 | 53.0 | 80.00 | 53.00 | 3.0 | 20000 | |
| 490-044C4-08H | 44.00 | 5.5 | 3 | 6 | 40.00 | 40.0 | 60.00 | 1.2 | 27600 | ||
| 490-044C4-08M | 44.00 | 5.5 | 3 | 5 | 40.00 | 40.0 | 60.00 | 1.2 | 27600 | ||
| 490-044C4-14H | 44.00 | 10.0 | 3 | 4 | 40.00 | 70.0 | 70.00 | 3.0 | 24600 | ||
| 490-044C4-14M | 44.00 | 10.0 | 3 | 3 | 40.00 | 45.0 | 70.00 | 3.0 | 24600 | ||
| 490-050C5-08H | 50.00 | 5.5 | 3 | 7 | 50.00 | 50.0 | 75.00 | 50.00 | 1.2 | 25500 | |
| 490-050C5-08M | 50.00 | 5.5 | 3 | 5 | 50.00 | 50.0 | 75.00 | 50.00 | 1.2 | 25500 | |
| 490-050C5-14H | 50.00 | 10.0 | 3 | 5 | 50.00 | 50.0 | 75.00 | 50.00 | 3.0 | 22400 | |
| 490-050C5-14M | 50.00 | 10.0 | 3 | 4 | 50.00 | 53.0 | 75.00 | 50.00 | 3.0 | 13700 | |
| 490-050C6-08H | 50.00 | 5.5 | 3 | 7 | 63.00 | 53.0 | 80.00 | 53.00 | 1.2 | 20000 | |
| 490-050C6-08M | 50.00 | 5.5 | 3 | 5 | 63.00 | 53.0 | 80.00 | 53.00 | 1.2 | 20000 | |
| 490-050C6-14H | 50.00 | 10.0 | 3 | 5 | 63.00 | 53.0 | 80.00 | 53.00 | 3.0 | 20000 | |
| 490-050C6-14M | 50.00 | 10.0 | 3 | 4 | 63.00 | 53.0 | 80.00 | 53.00 | 3.0 | 13700 |
