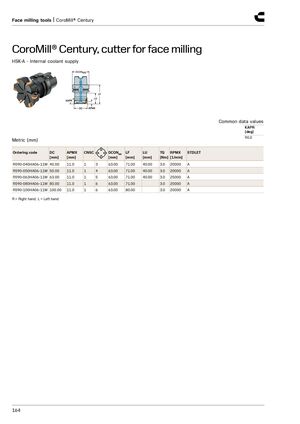

CoroMill® Century, cutter for face milling
HSK-A - Internal coolant supply
Common data values
| Metric (mm) | KAPR [deg] 90.0 | |||||||||
| Ordering code | DC [mm] | APMX [mm] | CNSC | DCONMS [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| R590-040HA06-11M | 40.00 | 11.0 | 1 3 | 63.00 | 71.00 | 40.00 | 3.0 | 20000 | A | |
| R590-050HA06-11M | 50.00 | 11.0 | 1 4 | 63.00 | 71.00 | 40.00 | 3.0 | 20000 | A | |
| R590-063HA06-11M | 63.00 | 11.0 | 1 5 | 63.00 | 71.00 | 40.00 | 3.0 | 25000 | A | |
| R590-080HA06-11M | 80.00 | 11.0 | 1 6 | 63.00 | 71.00 | 3.0 | 20000 | A | ||
| R590-100HA06-11M | 100.00 | 11.0 | 1 6 | 63.00 | 80.00 | 3.0 | 20000 | A |
R = Right hand, L = Left hand
