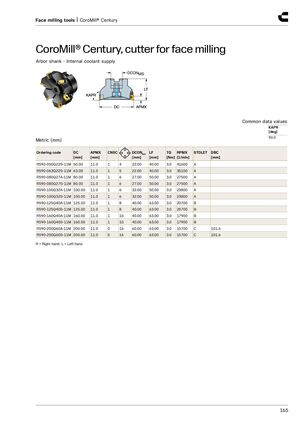

CoroMill® Century, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
| Metric (mm) | KAPR [deg] 90.0 | ||||||||||
| Ordering code | DC [mm] | APMX [mm] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | DBC [mm] | |
| R590-050Q22S-11M | 50.00 | 11.0 | 1 | 4 | 22.00 | 40.00 | 3.0 | 41600 | A | ||
| R590-063Q22S-11M | 63.00 | 11.0 | 1 | 5 | 22.00 | 40.00 | 3.0 | 35100 | A | ||
| R590-080Q27A-11M | 80.00 | 11.0 | 1 | 6 | 27.00 | 50.00 | 3.0 | 27500 | A | ||
| R590-080Q27S-11M | 80.00 | 11.0 | 1 | 6 | 27.00 | 50.00 | 3.0 | 27500 | A | ||
| R590-100Q32A-11M | 100.00 | 11.0 | 1 | 6 | 32.00 | 50.00 | 3.0 | 23800 | A | ||
| R590-100Q32S-11M | 100.00 | 11.0 | 1 | 6 | 32.00 | 50.00 | 3.0 | 23800 | A | ||
| R590-125Q40A-11M | 125.00 | 11.0 | 1 | 8 | 40.00 | 63.00 | 3.0 | 20700 | B | ||
| R590-125Q40S-11M | 125.00 | 11.0 | 1 | 8 | 40.00 | 63.00 | 3.0 | 20700 | B | ||
| R590-160Q40A-11M | 160.00 | 11.0 | 1 | 10 | 40.00 | 63.00 | 3.0 | 17900 | B | ||
| R590-160Q40S-11M | 160.00 | 11.0 | 1 | 10 | 40.00 | 63.00 | 3.0 | 17900 | B | ||
| R590-200Q60A-11M | 200.00 | 11.0 | 0 | 16 | 60.00 | 63.00 | 3.0 | 15700 | C | 101.6 | |
| R590-200Q60S-11M | 200.00 | 11.0 | 0 | 16 | 60.00 | 63.00 | 3.0 | 15700 | C | 101.6 |
R = Right hand, L = Left hand
