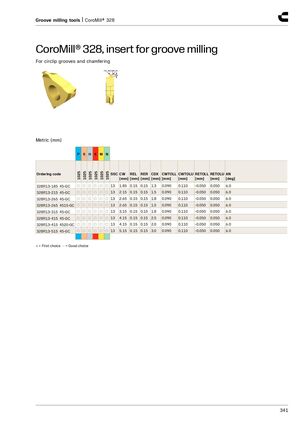

CoroMill® 328, insert for groove milling
For circlip grooves and chamfering
RER CW REL
CDX
Metric (mm)
| P | S | H | K | M | N | |||||||||||
| Ordering code | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 SSC | CW [mm] | REL [mm] | RER [mm] | CDX [mm] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] | AN [deg] | |
| 328R13-185 45-GC | ○ | ○ | ○ | ○ | ○ | ○13 | 1.85 | 0.15 | 0.15 | 1.3 | 0.090 | 0.110 | -0.050 | 0.050 | 6.0 | |
| 328R13-215 45-GC | ○ | ○ | ○ | ○ | ○ | ○13 | 2.15 | 0.15 | 0.15 | 1.5 | 0.090 | 0.110 | -0.050 | 0.050 | 6.0 | |
| 328R13-265 45-GC | ○ | ○ | ○ | ○ | ○ | ○13 | 2.65 | 0.15 | 0.15 | 1.8 | 0.090 | 0.110 | -0.050 | 0.050 | 6.0 | |
| 328R13-265 4515-GC | ○ | ○ | ○ | ○ | ○ | ○13 | 2.65 | 0.15 | 0.15 | 1.5 | 0.090 | 0.110 | -0.050 | 0.050 | 6.0 | |
| 328R13-315 45-GC | ○ | ○ | ○ | ○ | ○ | ○13 | 3.15 | 0.15 | 0.15 | 1.8 | 0.090 | 0.110 | -0.050 | 0.050 | 6.0 | |
| 328R13-415 45-GC | ○ | ○ | ○ | ○ | ○ | ○13 | 4.15 | 0.15 | 0.15 | 2.5 | 0.090 | 0.110 | -0.050 | 0.050 | 6.0 | |
| 328R13-415 4520-GC | ○ | ○ | ○ | ○ | ○ | ○13 | 4.15 | 0.15 | 0.15 | 2.0 | 0.090 | 0.110 | -0.050 | 0.050 | 6.0 | |
| 328R13-515 45-GC | ○ | ○ | ○ | ○ | ○ | ○13 | 5.15 | 0.15 | 0.15 | 3.0 | 0.090 | 0.110 | -0.050 | 0.050 | 6.0 |
- = First choice = Good choice
