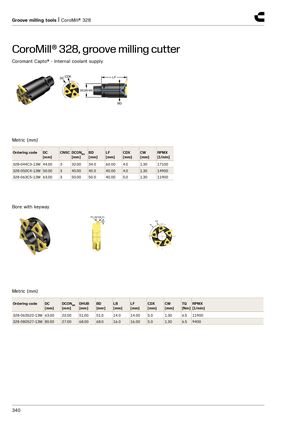

CoroMill® 328, groove milling cutter
Coromant Capto® - Internal coolant supply
CDX LF DC
DCON MS
BD
Metric (mm)
| Ordering code | DC | CNS | C DCONMS | BD | LF | CDX | CW | RPMX |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [1/min] | ||
| 328-044C3-13M | 44.00 | 3 | 32.00 | 34.0 | 60.00 | 4.0 | 1.30 | 17100 |
| 328-050C4-13M | 50.00 | 3 | 40.00 | 40.0 | 40.00 | 4.0 | 1.30 | 14900 |
| 328-063C5-13M | 63.00 | 3 | 50.00 | 50.0 | 40.00 | 5.0 | 1.30 | 11900 |
Bore with keyway
RER CW REL
CDX CDX DC
Metric (mm)
| Ordering code | DC | DCONMS | DHUB | BD | LB | LF | CDX | CW | TQ | RPMX |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | |
| 328-063S22-13M | 63.00 | 22.00 | 51.00 | 51.0 | 14.0 | 14.00 | 5.0 | 1.30 | 6.5 | 11900 |
| 328-080S27-13M | 80.00 | 27.00 | 68.00 | 68.0 | 16.0 | 16.00 | 5.0 | 1.30 | 6.5 | 9400 |
