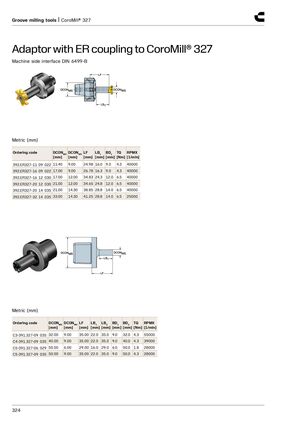

Adaptor with ER coupling to CoroMill® 327
Machine side interface DIN 6499-B
Metric (mm)
| Ordering code | DCONMS [mm] | DCONWS [mm] | LF [mm] | LB1 [mm] | BD1 [mm] | TQ [Nm] | RPMX [1/min] |
| 392.ER327-11 09 022 | 11.40 | 9.00 | 24.98 | 16.0 | 9.0 | 4.3 | 40000 |
| 392.ER327-16 09 022 | 17.00 | 9.00 | 26.78 | 16.3 | 9.0 | 4.3 | 40000 |
| 392.ER327-16 12 030 | 17.00 | 12.00 | 34.83 | 24.3 | 12.0 | 6.5 | 40000 |
| 392.ER327-20 12 030 | 21.00 | 12.00 | 34.65 | 24.8 | 12.0 | 6.5 | 40000 |
| 392.ER327-20 14 035 | 21.00 | 14.30 | 38.85 | 28.8 | 14.0 | 6.5 | 40000 |
| 392.ER327-32 14 035 | 33.00 | 14.30 | 41.25 | 28.8 | 14.0 | 6.5 | 25000 |
Metric (mm)
| Ordering code | DCONMS | DCONWS | LF | LB1 | LB2 | BD1 | BD2 | TQ | RPMX |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | |
| C3-391.327-09 035 | 32.00 | 9.00 | 35.00 | 22.0 | 35.0 | 9.0 | 32.0 | 4.3 | 55000 |
| C4-391.327-09 035 | 40.00 | 9.00 | 35.00 | 22.0 | 35.0 | 9.0 | 40.0 | 4.3 | 39000 |
| C5-391.327-06 029 | 50.00 | 6.00 | 29.00 | 16.0 | 29.0 | 6.0 | 50.0 | 1.8 | 28000 |
| C5-391.327-09 035 | 50.00 | 9.00 | 35.00 | 22.0 | 35.0 | 9.0 | 50.0 | 4.3 | 28000 |
