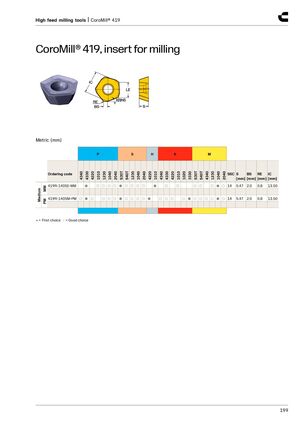

CoroMill® 419, insert for milling
Metric (mm)
P S H K M
| Ordering code | SSC S | BS | RE | IC | |
| [mm] [mm] [mm] [mm] | |||||
| 419R-1405E-MM | 14 | 5.47 2.0 | 0.8 | 13.50 | |
| 419R-1405M-PM | 14 | 5.47 2.0 | 0.8 | 13.50 |
- = First choice ○ = Good choice
