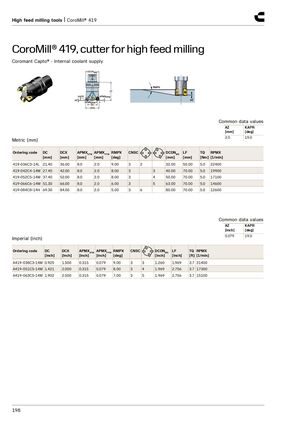

CoroMill® 419, cutter for high feed milling
Coromant Capto® - Internal coolant supply
| Common AZ [mm] | data values KAPR [deg] | ||||||||||||
| Metric (mm) | 2.0 | 19.0 | |||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | |||
| 419-036C3-14L | 21.40 | 36.00 | 8.0 | 2.0 | 9.00 | 3 | 2 | 32.00 | 50.00 | 5.0 | 22400 | ||
| 419-042C4-14M | 27.40 | 42.00 | 8.0 | 2.0 | 8.00 | 3 | 3 | 40.00 | 70.00 | 5.0 | 19900 | ||
| 419-052C5-14M | 37.40 | 52.00 | 8.0 | 2.0 | 8.00 | 3 | 4 | 50.00 | 70.00 | 5.0 | 17100 | ||
| 419-066C6-14M | 51.30 | 66.00 | 8.0 | 2.0 | 6.00 | 3 | 5 | 63.00 | 70.00 | 5.0 | 14600 | ||
| 419-084C8-14H | 69.30 | 84.00 | 8.0 | 2.0 | 5.00 | 3 | 6 | 80.00 | 70.00 | 5.0 | 12600 |
| Common | data values | ||||||||||
| AZ [inch] | KAPR [deg] | ||||||||||
| mperial (inch) | 0.079 | 19.0 | |||||||||
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFFW [inch] | RMPX [deg] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | ||
| A419-038C3-14M | 0.925 | 1.500 | 0.315 | 0.079 | 9.00 | 3 3 | 1.260 | 1.969 | 3.7 21400 | ||
| A419-051C5-14M | 1.421 | 2.000 | 0.315 | 0.079 | 8.00 | 3 4 | 1.969 | 2.756 | 3.7 17300 | ||
| A419-063C5-14M | 1.902 | 2.500 | 0.315 | 0.079 | 7.00 | 3 5 | 1.969 | 2.756 | 3.7 15100 |
