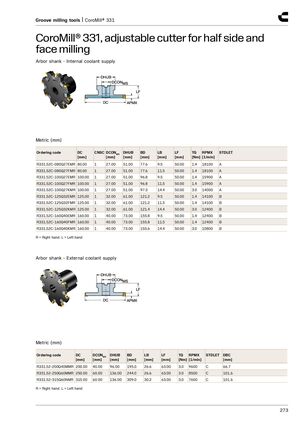

face milling
Arbor shank - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | CNSC | DCONMS [mm] | DHUB [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET |
| R331.52C-080Q27EMR | 80.00 | 1 | 27.00 | 51.00 | 77.6 | 9.5 | 50.00 | 1.4 | 18100 | A |
| R331.52C-080Q27FMR | 80.00 | 1 | 27.00 | 51.00 | 77.6 | 11.5 | 50.00 | 1.4 | 18100 | A |
| R331.52C-100Q27EMR | 100.00 | 1 | 27.00 | 51.00 | 96.8 | 9.5 | 50.00 | 1.4 | 15900 | A |
| R331.52C-100Q27FMR | 100.00 | 1 | 27.00 | 51.00 | 96.8 | 11.5 | 50.00 | 1.4 | 15900 | A |
| R331.52C-100Q27KMR | 100.00 | 1 | 27.00 | 51.00 | 97.3 | 14.4 | 50.00 | 3.0 | 14000 | A |
| R331.52C-125Q32EMR | 125.00 | 1 | 32.00 | 61.00 | 121.2 | 9.5 | 50.00 | 1.4 | 14100 | B |
| R331.52C-125Q32FMR | 125.00 | 1 | 32.00 | 61.00 | 121.2 | 11.5 | 50.00 | 1.4 | 14100 | B |
| R331.52C-125Q32KMR | 125.00 | 1 | 32.00 | 61.00 | 121.4 | 14.4 | 50.00 | 3.0 | 12400 | B |
| R331.52C-160Q40EMR | 160.00 | 1 | 40.00 | 73.00 | 155.8 | 9.5 | 50.00 | 1.4 | 12400 | B |
| R331.52C-160Q40FMR | 160.00 | 1 | 40.00 | 73.00 | 155.8 | 11.5 | 50.00 | 1.4 | 12400 | B |
| R331.52C-160Q40KMR | 160.00 | 1 | 40.00 | 73.00 | 155.6 | 14.4 | 50.00 | 3.0 | 10800 | B |
R = Right hand, L = Left hand
Arbor shank - External coolant supply
Metric (mm)
| Ordering code | DC | DCONMS | DHUB | BD | LB | LF | TQ | RPMX | STDLET | DBC |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | [mm] | ||
| R331.52-200Q40MMR | 200.00 | 40.00 | 96.00 | 195.0 | 26.6 | 63.00 | 3.0 | 9600 | C | 66.7 |
| R331.52-250Q60MMR | 250.00 | 60.00 | 136.00 | 244.0 | 26.6 | 63.00 | 3.0 | 8500 | C | 101.6 |
| R331.52-315Q60NMR | 315.00 | 60.00 | 136.00 | 309.0 | 30.2 | 63.00 | 3.0 | 7600 | C | 101.6 |
