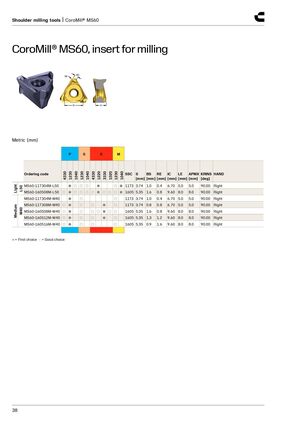

Shoulder milling tools | CoroMill® MS60 CoroMill® MS60, insert for milling BS RE IC S Metric (mm) P S K M 4330 1230 1040 1230 1040 4330 1220 3330 1020 1230 1040 Ordering code SSC S BS RE IC LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] MS60-11T304M-L50 ●○○○ ● ○ ● 11T3 3.74 1.0 0.4 6.70 5.0 5.0 90.00 Right Light L50 MS60-160508M-L50 ○ ● ○ ○ ○ ○ ● ○ ○ ○ ● 1605 5.35 1.6 0.8 9.60 8.0 8.0 90.00 Right MS60-11T304M-M40 ● ○ ○ 11T3 3.74 1.0 0.4 6.70 5.0 5.0 90.00 Right MS60-11T308M-M40 ○ ● ○ ○ ● ○ 11T3 3.74 0.8 0.8 6.70 5.0 5.0 90.00 Right Medium MS60-160508M-M40 ○ ● ○ ○ ○ ● ○ ○ 1605 5.35 1.6 M40 0.8 9.60 8.0 8.0 90.00 Right MS60-160512M-M40 ○ ● ○ ○ ● ○ 1605 5.35 1.3 1.2 9.60 8.0 8.0 90.00 Right MS60-160516M-M40 ○ ● ○ ○ ○ 1605 5.35 0.9 1.6 9.60 8.0 8.0 90.00 Right ● = First choice ○ = Good choice 38
