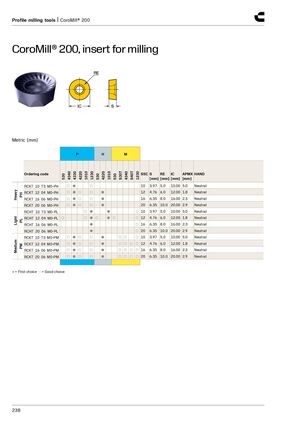

CoroMill® 200, insert for milling
Metric (mm)
| P | H | M | ||||||||||||||
| Ordering code | 530 4340 | 4330 | 4220 | 1010 | 1230 | 530 4220 | 1010 530 | S30T | 4340 | S40T 1230 SSC | S [mm] | RE [mm] | IC [mm] | APMX [mm] | HAND | |
| RCKT 10 T3 M0-PH | ○ | ● | ○ | 10 | 3.97 | 5.0 | 10.00 | 5.0 | Neutral | |||||||
| avy H | RCKT 12 04 M0-PH | ○ | ● | ○ | ○ | ● | 12 | 4.76 | 6.0 | 12.00 | 1.8 | Neutral | ||||
| He P | RCKT 16 06 M0-PH | ○ | ● | ○ | ○ | ● | 16 | 6.35 | 8.0 | 16.00 | 2.3 | Neutral | ||||
| RCKT 20 06 M0-PH | ○ | ● | ○ | ○ | ● | 20 | 6.35 | 10.0 | 20.00 | 2.9 | Neutral | |||||
| RCHT 10 T3 M0-PL | ○ | ● | ● | ○10 | 3.97 | 5.0 | 10.00 | 5.0 | Neutral | |||||||
| ght L | RCHT 12 04 M0-PL | ○ | ○ | ● | ○ | ●○ | ○12 | 4.76 | 6.0 | 12.00 | 1.8 | Neutral | ||||
| Li P | RCHT 16 06 M0-PL | ● | ○16 | 6.35 | 8.0 | 16.00 | 2.3 | Neutral | ||||||||
| RCHT 20 06 M0-PL | ● | ○20 | 6.35 | 10.0 | 20.00 | 2.9 | Neutral | |||||||||
| RCKT 10 T3 M0-PM | ○ | ● | ○ | ○ | ● | ○ | ○ | ○10 | 3.97 | 5.0 | 10.00 | 5.0 | Neutral | |||
| dium M | RCKT 12 04 M0-PM | ○ | ● | ○ | ○ | ● | ○ | ○ | ○○12 | 4.76 | 6.0 | 12.00 | 1.8 | Neutral | ||
| Me P | RCKT 16 06 M0-PM | ○ | ● | ○ | ○ | ● | ○ | ○ | ○○16 | 6.35 | 8.0 | 16.00 | 2.3 | Neutral | ||
| RCKT 20 06 M0-PM | ○ | ● | ○ | ○ | ● | ○ | ○ | ○○20 | 6.35 | 10.0 | 20.00 | 2.9 | Neutral |
- = First choice = Good choice
