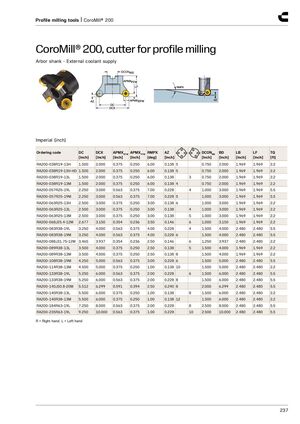

CoroMill® 200, cutter for profile milling
Arbor shank - External coolant supply
Imperial (inch)
| Ordering code | DC [inch] | DCX [inch] | APMXEFW [inch] | APMXFFW [inch] | RMPX [deg] | AZ [inch] | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | TQ [ft] | |
| RA200-038R19-13H | 1.500 | 2.000 | 0.375 | 0.250 | 6.00 | 0.138 5 | 0.750 | 2.000 | 1.969 | 1.969 | 2.2 | |
| RA200-038R19-13H-HD | 1.500 | 2.000 | 0.375 | 0.250 | 6.00 | 0.138 5 | 0.750 | 2.000 | 1.969 | 1.969 | 2.2 | |
| RA200-038R19-13L | 1.500 | 2.000 | 0.375 | 0.250 | 6.00 | 0.138 | 3 | 0.750 | 2.000 | 1.969 | 1.969 | 2.2 |
| RA200-038R19-13M | 1.500 | 2.000 | 0.375 | 0.250 | 6.00 | 0.138 4 | 0.750 | 2.000 | 1.969 | 1.969 | 2.2 | |
| RA200-057R25-19L | 2.250 | 3.000 | 0.563 | 0.375 | 7.00 | 0.228 | 4 | 1.000 | 3.000 | 1.969 | 1.969 | 5.5 |
| RA200-057R25-19M | 2.250 | 3.000 | 0.563 | 0.375 | 7.00 | 0.228 5 | 1.000 | 3.000 | 1.969 | 1.969 | 5.5 | |
| RA200-063R25-13H | 2.500 | 3.000 | 0.375 | 0.250 | 3.00 | 0.138 6 | 1.000 | 3.000 | 1.969 | 1.969 | 2.2 | |
| RA200-063R25-13L | 2.500 | 3.000 | 0.375 | 0.250 | 3.00 | 0.138 | 4 | 1.000 | 3.000 | 1.969 | 1.969 | 2.2 |
| RA200-063R25-13M | 2.500 | 3.000 | 0.375 | 0.250 | 3.00 | 0.138 | 5 | 1.000 | 3.000 | 1.969 | 1.969 | 2.2 |
| RA200-068J25.4-12M | 2.677 | 3.150 | 0.354 | 0.236 | 3.50 | 0.146 | 6 | 1.000 | 3.150 | 1.969 | 1.969 | 2.2 |
| RA200-083R38-19L | 3.250 | 4.000 | 0.563 | 0.375 | 4.00 | 0.228 | 4 | 1.500 | 4.000 | 2.480 | 2.480 | 5.5 |
| RA200-083R38-19M | 3.250 | 4.000 | 0.563 | 0.375 | 4.00 | 0.228 6 | 1.500 | 4.000 | 2.480 | 2.480 | 5.5 | |
| RA200-088J31.75-12M | 3.465 | 3.937 | 0.354 | 0.236 | 2.50 | 0.146 | 6 | 1.250 | 3.937 | 2.480 | 2.480 | 2.2 |
| RA200-089R38-13L | 3.500 | 4.000 | 0.375 | 0.250 | 2.50 | 0.138 | 5 | 1.500 | 4.000 | 1.969 | 1.969 | 2.2 |
| RA200-089R38-13M | 3.500 | 4.000 | 0.375 | 0.250 | 2.50 | 0.138 8 | 1.500 | 4.000 | 1.969 | 1.969 | 2.2 | |
| RA200-108R38-19M | 4.250 | 5.000 | 0.563 | 0.375 | 3.00 | 0.228 6 | 1.500 | 5.000 | 2.480 | 2.480 | 5.5 | |
| RA200-114R38-13M | 4.500 | 5.000 | 0.375 | 0.250 | 1.00 | 0.138 10 | 1.500 | 5.000 | 2.480 | 2.480 | 2.2 | |
| RA200-133R38-19L | 5.250 | 6.000 | 0.563 | 0.375 | 2.00 | 0.228 | 6 | 1.500 | 6.000 | 2.480 | 2.480 | 5.5 |
| RA200-133R38-19M | 5.250 | 6.000 | 0.563 | 0.375 | 2.00 | 0.228 8 | 1.500 | 6.000 | 2.480 | 2.480 | 5.5 | |
| RA200-140J50.8-20M | 5.512 | 6.299 | 0.591 | 0.394 | 2.50 | 0.240 8 | 2.000 | 6.299 | 2.480 | 2.480 | 5.5 | |
| RA200-140R38-13L | 5.500 | 6.000 | 0.375 | 0.250 | 1.00 | 0.138 | 8 | 1.500 | 6.000 | 2.480 | 2.480 | 2.2 |
| RA200-140R38-13M | 5.500 | 6.000 | 0.375 | 0.250 | 1.00 | 0.138 12 | 1.500 | 6.000 | 2.480 | 2.480 | 2.2 | |
| RA200-184R63-19L | 7.250 | 8.000 | 0.563 | 0.375 | 2.00 | 0.228 | 8 | 2.500 | 8.000 | 2.480 | 2.480 | 5.5 |
| RA200-235R63-19L | 9.250 | 10.000 | 0.563 | 0.375 | 1.00 | 0.228 | 10 | 2.500 | 10.000 | 2.480 | 2.480 | 5.5 |
R = Right hand, L = Left hand
