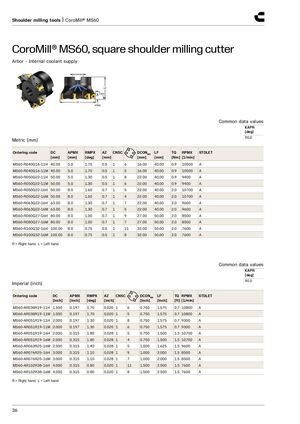

Плечевые фрезы | CoroMill® MS60
CoroMill® MS60 — фреза для квадратного плечевого фрезерования с внутренним подводом охлаждающей жидкости
Метрические размеры (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [°] | AZ [мм] | CNSC | DCONMS [мм] | LF [мм] | TQ [Нм] | RPMX [1/мин] | STDLET |
|---|---|---|---|---|---|---|---|---|---|---|
| MS60-R040Q16-11H | 40.00 | 5.0 | 1.70 | 0.5 | 1 | 16.00 | 40.00 | 0.9 | 10500 | A |
| MS60-R040Q16-11M | 40.00 | 5.0 | 1.70 | 0.5 | 1 | 16.00 | 40.00 | 0.9 | 10500 | A |
| MS60-R050Q22-11H | 50.00 | 5.0 | 1.30 | 0.5 | 1 | 22.00 | 40.00 | 0.9 | 9400 | A |
| MS60-R050Q22-11M | 50.00 | 5.0 | 1.30 | 0.5 | 1 | 22.00 | 40.00 | 0.9 | 9400 | A |
| MS60-R050Q22-16H | 50.00 | 8.0 | 1.60 | 0.7 | 1 | 22.00 | 40.00 | 2.0 | 10700 | A |
| MS60-R050Q22-16M | 50.00 | 8.0 | 1.60 | 0.7 | 1 | 22.00 | 40.00 | 2.0 | 10700 | A |
| MS60-R063Q22-16H | 63.00 | 8.0 | 1.30 | 0.7 | 1 | 22.00 | 40.00 | 2.0 | 9600 | A |
| MS60-R063Q22-16M | 63.00 | 8.0 | 1.30 | 0.7 | 1 | 22.00 | 40.00 | 2.0 | 9600 | A |
| MS60-R080Q27-16H | 80.00 | 8.0 | 1.00 | 0.7 | 1 | 27.00 | 50.00 | 2.0 | 8500 | A |
| MS60-R080Q27-16M | 80.00 | 8.0 | 1.00 | 0.7 | 1 | 27.00 | 50.00 | 2.0 | 8500 | A |
| MS60-R100Q32-16H | 100.00 | 8.0 | 0.75 | 0.5 | 1 | 32.00 | 50.00 | 2.0 | 7600 | A |
| MS60-R100Q32-16M | 100.00 | 8.0 | 0.75 | 0.5 | 1 | 32.00 | 50.00 | 2.0 | 7600 | A |
R = правое вращение, L = левое вращение
Дюймовые размеры (дюймы)
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [°] | AZ [дюйм] | CNSC | DCONMS [дюйм] | LF [дюйм] | TQ [фт·фунт] | RPMX [1/мин] | STDLET |
|---|---|---|---|---|---|---|---|---|---|---|
| MS60-AR038R19-11H | 1.500 | 0.197 | 1.70 | 0.020 | 1 | 0.750 | 1.575 | 0.7 | 10800 | A |
| MS60-AR038R19-11M | 1.500 | 0.197 | 1.70 | 0.020 | 1 | 0.750 | 1.575 | 0.7 | 10800 | A |
| MS60-AR051R19-11H | 2.000 | 0.197 | 1.30 | 0.020 | 1 | 0.750 | 1.575 | 0.7 | 9300 | A |
| MS60-AR051R19-11M | 2.000 | 0.197 | 1.30 | 0.020 | 1 | 0.750 | 1.575 | 0.7 | 9300 | A |
| MS60-AR051R19-16H | 2.000 | 0.315 | 1.80 | 0.028 | 1 | 0.750 | 1.500 | 1.5 | 10700 | A |
| MS60-AR051R19-16M | 2.000 | 0.315 | 1.80 | 0.028 | 1 | 0.750 | 1.500 | 1.5 | 10700 | A |
| MS60-AR063R25-16M | 2.500 | 0.315 | 1.40 | 0.028 | 1 | 1.000 | 1.625 | 1.5 | 9600 | A |
| MS60-AR076R25-16H | 3.000 | 0.315 | 1.10 | 0.028 | 1 | 1.000 | 2.000 | 1.5 | 8500 | A |
| MS60-AR076R25-16M | 3.000 | 0.315 | 1.10 | 0.028 | 1 | 1.000 | 2.000 | 1.5 | 8500 | A |
| MS60-AR102R38-16H | 4.000 | 0.315 | 0.80 | 0.020 | 1 | 1.500 | 2.500 | 1.5 | 7600 | A |
| MS60-AR102R38-16M | 4.000 | 0.315 | 0.80 | 0.020 | 1 | 1.500 | 2.500 | 1.5 | 7600 | A |
R = правое вращение, L = левое вращение
