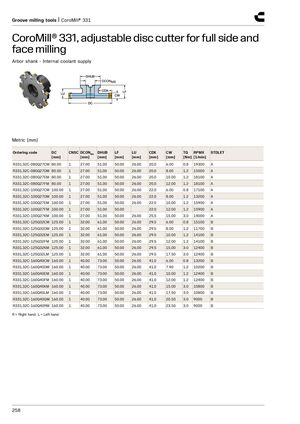

Фрезерный инструмент Sandvik 2026 - страница 262
Навигация
Каталог Sandvik токарные инструменты 2017
Каталог Sandvik цельный режущий инструмент 2018
Дополнение к каталогам Sandvik 2020.2
Инструмент для отрезки и обработки канавок Sandvik 2026
Каталог Sandvik инструменты для автоматов продольного точения 2018
Каталог Sandvik базовые наборы инструментов для новых станков - Selection guide
- Shoulder milling tools
- CoroMill® MS20
- CoroMill® MS20, cutter for square shoulder milling
- CoroMill® MS20, Silent Tools™ cutter for square shoulder milling
- CoroMill® MS20, cutter for square shoulder milling
- CoroMill® MS20, insert for milling
- CoroMill® MS40
- CoroMill® MS40, tangential square shoulder milling cutter
- CoroMill® MS40, insert for milling
- CoroMill® MS60
- CoroMill® MS60, square shoulder milling cutter
- CoroMill® MS60, insert for milling
- CoroMill® 390
- CoroMill® 390, cutter for square shoulder milling
- CoroMill® 390, long edge cutter for square shoulder milling
- CoroMill® 390, Silent Tools™ cutter for square shoulder milling
- CoroMill® 390, insert for milling
- CoroMill® 390, insert for square shoulder milling
- CoroMill® 390, insert for milling
- CoroMill® 490
- CoroMill® 490, cutter for square shoulder milling
- CoroMill® 490, insert for milling
- Face milling tools
- CoroMill® MF80
- CoroMill® MF80, face milling cutter
- CoroMill® MF80, insert for milling
- CoroMill® 245
- CoroMill® 245, cutter for face milling
- CoroMill® 245, insert for milling
- CoroMill® 345
- CoroMill® 345, cutter for face milling
- CoroMill® 345, insert for milling
- CoroMill® 745
- CoroMill® 745, cutter for face milling
- CoroMill® 745, insert for milling
- CoroMill® 365
- CoroMill® 365, cutter for face milling
- CoroMill® 365, insert for milling
- CoroMill® Century
- CoroMill® Century, cutter for face milling
- CoroMill® Century, insert for milling
- High feed milling tools
- CoroMill® MH20
- CoroMill® MH20, cutter for high feed milling
- CoroMill® MH20, insert for milling
- CoroMill® 210
- CoroMill® 210, cutter for high feed milling
- CoroMill® 210, insert for milling
- CoroMill® 419
- CoroMill® 419, cutter for high feed milling
- CoroMill® 419, insert for milling
- Profile milling tools
- CoroMill® MR80
- CoroMill® MR80, face milling cutter
- CoroMill® MR80, insert for milling
- CoroMill® 300
- CoroMill® 300, cutter for profile milling
- CoroMill® 300, insert for milling
- CoroMill® 200
- CoroMill® 200, cutter for profile milling
- CoroMill® 200, insert for milling
- CoroMill® 216
- CoroMill® 216, cutter for profile milling
- CoroMill® 216, insert for profile milling
- Groove milling tools
- CoroMill® 331
- CoroMill® 331, adjustable disc cutter for full side and face milling
- CoroMill® 331, adjustable cutter for full side and face milling
- CoroMill® 331, cutter for full side and face milling
- CoroMill® 331, adjustable cutter for half side and face milling
- CoroMill® 331 adjustable half side and face disc milling cutter
- CoroMill® 331, adjustable cutter for half side and back face milling
- CoroMill® 331, adjustable double half side and face disc milling cutter
- CoroMill® 331, insert for side and face milling
- CoroMill® QD
- CoroMill® QD, cutter for grooving and parting off
- CoroMill® QD, insert for grooving
- CoroMill® 327
- Adaptor with cylindrical shank coupling to CoroMill® 327
- Adaptor with Weldon coupling to CoroMill® 327
- Adaptor with Coromant® EH coupling to CoroMill® 327
- Adaptor with ER coupling to CoroMill® 327
- CoroMill® 327, solid carbide head for grooving
- CoroMill® 327, solid carbide head for thread milling
- CoroMill® 327, solid carbide head for chamfering
- CoroMill® 328
- CoroMill® 328, groove milling cutter
- CoroMill® 328, insert for groove milling
- CoroMill® 328, insert for thread milling
- General information
- Coolant supply information
- Cutting tool parameters according to ISO 13399
face milling
Arbor shank - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | CNSC | DCONMS [mm] | DHUB [mm] | LF [mm] | LU [mm] | CDX [mm] | CW [mm] | TQ [Nm] | RPMX [1/min] | STDLET |
| R331.32C-080Q27CM | 80.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 20.0 | 6.00 | 0.8 | 19300 | A |
| R331.32C-080Q27DM | 80.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 20.0 | 8.00 | 1.2 | 15000 | A |
| R331.32C-080Q27EM | 80.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 20.0 | 10.00 | 1.2 | 18100 | A |
| R331.32C-080Q27FM | 80.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 20.0 | 12.00 | 1.2 | 18100 | A |
| R331.32C-100Q27CM | 100.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 22.0 | 6.00 | 0.8 | 17100 | A |
| R331.32C-100Q27DM | 100.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 22.0 | 8.00 | 1.2 | 13200 | A |
| R331.32C-100Q27EM | 100.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 22.0 | 10.00 | 1.2 | 15900 | A |
| R331.32C-100Q27FM | 100.00 | 1 | 27.00 | 51.00 | 50.00 | 22.0 | 12.00 | 1.2 | 15900 | A | |
| R331.32C-100Q27KM | 100.00 | 1 | 27.00 | 51.00 | 50.00 | 26.00 | 25.5 | 15.00 | 3.0 | 14000 | A |
| R331.32C-125Q32CM | 125.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 29.5 | 6.00 | 0.8 | 15100 | B |
| R331.32C-125Q32DM | 125.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 29.5 | 8.00 | 1.2 | 11700 | B |
| R331.32C-125Q32EM | 125.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 29.5 | 10.00 | 1.2 | 14100 | B |
| R331.32C-125Q32FM | 125.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 29.5 | 12.00 | 1.2 | 14100 | B |
| R331.32C-125Q32KM | 125.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 29.5 | 15.00 | 3.0 | 12400 | B |
| R331.32C-125Q32LM | 125.00 | 1 | 32.00 | 61.00 | 50.00 | 26.00 | 29.5 | 17.50 | 3.0 | 12400 | B |
| R331.32C-160Q40CM | 160.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 41.0 | 6.00 | 0.8 | 13200 | B |
| R331.32C-160Q40DM | 160.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 41.0 | 7.90 | 1.2 | 10200 | B |
| R331.32C-160Q40EM | 160.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 41.0 | 10.00 | 1.2 | 12400 | B |
| R331.32C-160Q40FM | 160.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 41.0 | 12.00 | 1.2 | 12400 | B |
| R331.32C-160Q40KM | 160.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 41.0 | 15.00 | 3.0 | 10800 | B |
| R331.32C-160Q40LM | 160.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 41.0 | 17.50 | 3.0 | 10800 | B |
| R331.32C-160Q40QM | 160.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 41.0 | 20.50 | 3.0 | 9000 | B |
| R331.32C-160Q40RM | 160.00 | 1 | 40.00 | 73.00 | 50.00 | 26.00 | 41.0 | 23.50 | 3.0 | 9000 | B |
R = Right hand, L = Left hand
