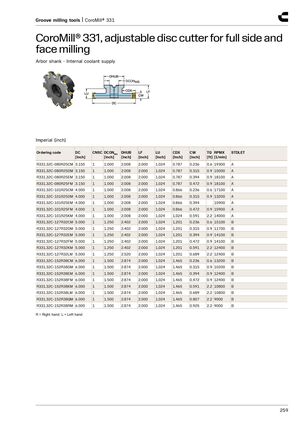

face milling
Arbor shank - Internal coolant supply
Imperial (inch)
| Ordering code | DC [inch] | CNSC DCONMS [inch] | DHUB [inch] | LF [inch] | LU [inch] | CDX [inch] | CW [inch] | TQ [ft] RPMX [1/min] | STDLET |
| R331.32C-080R25CM | 3.150 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.787 | 0.236 | 0.6 19300 | A |
| R331.32C-080R25DM | 3.150 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.787 | 0.315 | 0.9 15000 | A |
| R331.32C-080R25EM | 3.150 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.787 | 0.394 | 0.9 18100 | A |
| R331.32C-080R25FM | 3.150 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.787 | 0.472 | 0.9 18100 | A |
| R331.32C-101R25CM | 4.000 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.866 | 0.236 | 0.6 17100 | A |
| R331.32C-101R25DM | 4.000 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.866 | 0.315 | 0.9 13200 | A |
| R331.32C-101R25EM | 4.000 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.866 | 0.394 | 15900 | A |
| R331.32C-101R25FM | 4.000 | 1 1.000 | 2.008 | 2.000 | 1.024 | 0.866 | 0.472 | 0.9 15900 | A |
| R331.32C-101R25KM | 4.000 | 1 1.000 | 2.008 | 2.000 | 1.024 | 1.024 | 0.591 | 2.2 14000 | A |
| R331.32C-127R32CM | 5.000 | 1 1.250 | 2.402 | 2.000 | 1.024 | 1.201 | 0.236 | 0.6 15100 | B |
| R331.32C-127R32DM | 5.000 | 1 1.250 | 2.402 | 2.000 | 1.024 | 1.201 | 0.315 | 0.9 11700 | B |
| R331.32C-127R32EM | 5.000 | 1 1.250 | 2.402 | 2.000 | 1.024 | 1.201 | 0.394 | 0.9 14100 | B |
| R331.32C-127R32FM | 5.000 | 1 1.250 | 2.402 | 2.000 | 1.024 | 1.201 | 0.472 | 0.9 14100 | B |
| R331.32C-127R32KM | 5.000 | 1 1.250 | 2.402 | 2.000 | 1.024 | 1.201 | 0.591 | 2.2 12400 | B |
| R331.32C-127R32LM | 5.000 | 1 1.250 | 2.520 | 2.000 | 1.024 | 1.201 | 0.689 | 2.2 12400 | B |
| R331.32C-152R38CM | 6.000 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.465 | 0.236 | 0.6 13200 | B |
| R331.32C-152R38DM | 6.000 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.465 | 0.315 | 0.9 10200 | B |
| R331.32C-152R38EM | 6.000 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.465 | 0.394 | 0.9 12400 | B |
| R331.32C-152R38FM | 6.000 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.465 | 0.472 | 0.9 12400 | B |
| R331.32C-152R38KM | 6.000 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.465 | 0.591 | 2.2 10800 | B |
| R331.32C-152R38LM | 6.000 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.465 | 0.689 | 2.2 10800 | B |
| R331.32C-152R38QM | 6.000 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.465 | 0.807 | 2.2 9000 | B |
| R331.32C-152R38RM | 6.000 | 1 1.500 | 2.874 | 2.000 | 1.024 | 1.465 | 0.925 | 2.2 9000 | B |
R = Right hand, L = Left hand
