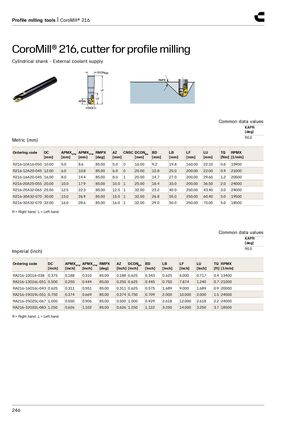

CoroMill® 216, cutter for profile milling
Cylindrical shank - External coolant supply
| Metric (mm) | Com | mon da | ta values KAPR [deg] 90.0 | |||||||||||
| Ordering code | DC [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | CNS | C DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | |
| R216-10A16-050 | 10.00 | 5.0 | 8.6 | 85.00 | 5.0 | 0 | 16.00 | 9.2 | 19.8 | 160.00 | 22.10 | 0.6 | 15900 | |
| R216-12A20-045 | 12.00 | 6.0 | 10.8 | 85.00 | 6.0 | 0 | 20.00 | 10.8 | 20.0 | 200.00 | 22.00 | 0.9 | 21000 | |
| R216-16A20-045 | 16.00 | 8.0 | 14.4 | 85.00 | 8.0 | 1 | 20.00 | 14.7 | 27.0 | 200.00 | 29.60 | 1.2 | 20000 | |
| R216-20A25-055 | 20.00 | 10.0 | 17.9 | 85.00 | 10.0 | 1 | 25.00 | 18.4 | 33.0 | 200.00 | 36.50 | 2.0 | 24000 | |
| R216-25A32-065 | 25.00 | 12.5 | 22.3 | 85.00 | 12.5 | 1 | 32.00 | 23.2 | 40.0 | 250.00 | 43.40 | 3.0 | 24000 | |
| R216-30A32-070 | 30.00 | 15.0 | 26.9 | 85.00 | 15.0 | 1 | 32.00 | 26.8 | 55.0 | 250.00 | 60.40 | 5.0 | 19500 | |
| R216-32A32-070 | 32.00 | 16.0 | 28.6 | 85.00 | 16.0 | 1 | 32.00 | 29.0 | 50.0 | 250.00 | 70.00 | 5.0 | 18500 |
R = Right hand, L = Left hand
| mperial (inch) | Common | data values KAPR [deg] 90.0 | ||||||||||
| Ordering code | DC [inch] | APMXEFW [inch] | APMXFFW [inch] | RMPX [deg] | AZ [inch] | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] RPMX [1/min] | |
| RA216-10O16-038 | 0.375 | 0.188 | 0.310 | 85.00 | 0.188 | 0.625 | 0.343 | 0.625 | 6.000 | 0.717 | 0.4 13400 | |
| RA216-13O16L-051 | 0.500 | 0.250 | 0.444 | 85.00 | 0.250 | 0.625 | 0.445 | 0.750 | 7.874 | 1.240 | 0.7 21000 | |
| RA216-16O16L-043 | 0.625 | 0.311 | 0.551 | 85.00 | 0.311 | 0.625 | 0.575 | 1.689 | 9.000 | 1.689 | 0.9 20000 | |
| RA216-19O19L-051 | 0.750 | 0.374 | 0.669 | 85.00 | 0.374 | 0.750 | 0.709 | 2.000 | 10.000 | 2.000 | 1.5 24000 | |
| RA216-25O25L-067 | 1.000 | 0.500 | 0.906 | 85.00 | 0.500 | 1.000 | 0.929 | 2.618 | 12.000 | 2.618 | 2.2 24000 | |
| RA216-32O32L-083 | 1.250 | 0.626 | 1.102 | 85.00 | 0.626 | 1.250 | 1.122 | 3.250 | 14.000 | 3.250 | 3.7 18500 |
R = Right hand, L = Left hand
