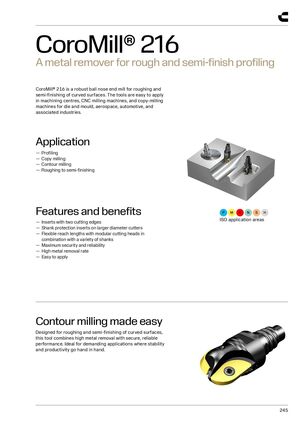

CoroMill® 216 A metal remover for rough and semi-finish profiling CoroMill® 216 is a robust ball nose end mill for roughing and semi-finishing of curved surfaces. The tools are easy to apply in machining centres, CNC milling machines, and copy-milling machines for die and mould, aerospace, automotive, and associated industries. Application — Profiling — Copy milling — Contour milling — Roughing to semi-finishing Features and benefits ISO application areas — Inserts with two cutting edges — Shank protection inserts on larger diameter cutters — Flexible reach lengths with modular cutting heads in combination with a variety of shanks — Maximum security and reliability — High metal removal rate — Easy to apply Contour milling made easy Designed for roughing and semi-finishing of curved surfaces, this tool combines high metal removal with secure, reliable performance. Ideal for demanding applications where stability and productivity go hand in hand. 245
