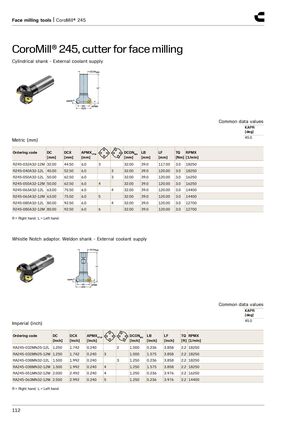

CoroMill® 245, cutter for face milling
Cylindrical shank - External coolant supply
Common data values
KAPR [deg] Metric (mm) 45.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | DCONMS [mm] | LB [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | ||
| R245-032A32-12M | 32.00 | 44.50 | 6.0 | 3 | 32.00 | 39.0 | 117.00 | 3.0 | 18250 | |
| R245-040A32-12L | 40.00 | 52.50 | 6.0 | 3 | 32.00 | 39.0 | 120.00 | 3.0 | 18250 | |
| R245-050A32-12L | 50.00 | 62.50 | 6.0 | 3 | 32.00 | 39.0 | 120.00 | 3.0 | 16250 | |
| R245-050A32-12M | 50.00 | 62.50 | 6.0 | 4 | 32.00 | 39.0 | 120.00 | 3.0 | 16250 | |
| R245-063A32-12L | 63.00 | 75.50 | 6.0 | 4 | 32.00 | 39.0 | 120.00 | 3.0 | 14400 | |
| R245-063A32-12M | 63.00 | 75.50 | 6.0 | 5 | 32.00 | 39.0 | 120.00 | 3.0 | 14400 | |
| R245-080A32-12L | 80.00 | 92.50 | 6.0 | 4 | 32.00 | 39.0 | 120.00 | 3.0 | 12700 | |
| R245-080A32-12M | 80.00 | 92.50 | 6.0 | 6 | 32.00 | 39.0 | 120.00 | 3.0 | 12700 |
R = Right hand, L = Left hand
Whistle Notch adaptor. Weldon shank - External coolant supply
Common data values
| mperial (inch) | KAPR [deg] 45.0 | ||||||||
| Ordering code | DC [inch] | DCX [inch] | APMXFF [inch] | W | DCONMS [inch] | LB [inch] | LF [inch] | TQ [ft] RPMX [1/min] | |
| RA245-032MN25-12L | 1.250 | 1.742 | 0.240 | 2 1.000 | 0.236 | 3.858 | 2.2 18250 | ||
| RA245-032MN25-12M | 1.250 | 1.742 | 0.240 | 3 | 1.000 | 1.575 | 3.858 | 2.2 18250 | |
| RA245-038MN32-12L | 1.500 | 1.992 | 0.240 | 3 1.250 | 0.236 | 3.858 | 2.2 18250 | ||
| RA245-038MN32-12M | 1.500 | 1.992 | 0.240 | 4 | 1.250 | 1.575 | 3.858 | 2.2 18250 | |
| RA245-051MN32-12M | 2.000 | 2.492 | 0.240 | 4 | 1.250 | 0.236 | 3.976 | 2.2 16250 | |
| RA245-063MN32-12M | 2.500 | 2.992 | 0.240 | 5 | 1.250 | 0.236 | 3.976 | 2.2 14400 |
