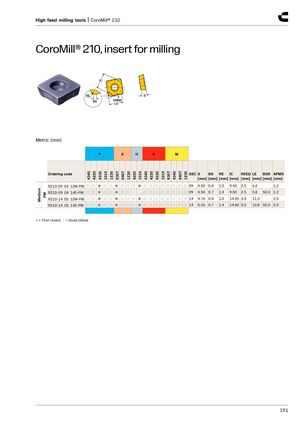

CoroMill® 210, insert for milling
Metric (mm)
P S H K M
Ordering code SSC S BS RE IC REEQ LE BSR APMX
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
| R210-09 04 12M-PM | 09 | 4.00 0.8 | 1.0 | 9.40 2.5 | 6.2 | 1.2 | |
| R210-09 04 14E-PM | 09 | 4.50 0.7 | 1.4 | 9.50 2.5 | 5.8 | 50.0 1.2 | |
| R210-14 05 12M-PM | 14 | 4.76 0.8 | 1.0 | 14.50 3.5 | 11.3 | 2.0 | |
| R210-14 05 14E-PM | 14 | 5.26 0.7 | 1.4 | 14.60 3.5 | 10.8 50.0 2.0 |
- = First choice = Good choice
