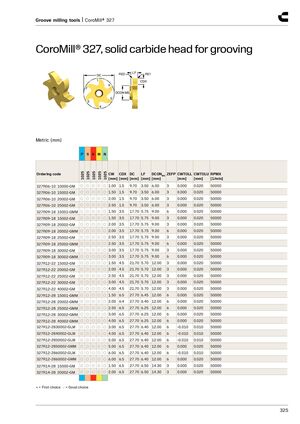

CoroMill® 327, solid carbide head for grooving
2
3
DC 1
4
RE2 LF RE1
CDX 6 DCON MS 5
Metric (mm)
| Ordering code | P 1025 | S 1025 | K M 1025 1025 | N 1025 | CW [mm] | CDX [mm] | DC [mm] | LF [mm] | DCONMS [mm] | ZEFP | CWTOLL [mm] | CWTOLU [mm] | RPMX [1/min] |
| 327R06-10 10000-GM | ○ | ○ | ○○ | ○ | 1.00 | 1.5 | 9.70 | 3.50 | 6.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R06-10 15002-GM | ○ | ○ | ○○ | ○ | 1.50 | 1.5 | 9.70 | 3.50 | 6.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R06-10 20002-GM | ○ | ○ | ○○ | ○ | 2.00 | 1.5 | 9.70 | 3.50 | 6.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R06-10 25002-GM | ○ | ○ | ○○ | ○ | 2.50 | 1.5 | 9.70 | 3.50 | 6.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R09-18 15001-GMM | ○ | ○ | ○○ | ○ | 1.50 | 3.5 | 17.70 | 5.75 | 9.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R09-18 15002-GM | ○ | ○ | ○○ | ○ | 1.50 | 3.5 | 17.70 | 5.75 | 9.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R09-18 20002-GM | ○ | ○ | ○○ | ○ | 2.00 | 3.5 | 17.70 | 5.75 | 9.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R09-18 20002-GMM | ○ | ○ | ○○ | ○ | 2.00 | 3.5 | 17.70 | 5.75 | 9.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R09-18 25002-GM | ○ | ○ | ○○ | ○ | 2.50 | 3.5 | 17.70 | 5.75 | 9.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R09-18 25002-GMM | ○ | ○ | ○○ | ○ | 2.50 | 3.5 | 17.70 | 5.75 | 9.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R09-18 30002-GM | ○ | ○ | ○○ | ○ | 3.00 | 3.5 | 17.70 | 5.75 | 9.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R09-18 30002-GMM | ○ | ○ | ○○ | ○ | 3.00 | 3.5 | 17.70 | 5.75 | 9.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R12-22 15002-GM | ○ | ○ | ○○ | ○ | 1.50 | 4.5 | 21.70 | 5.70 | 12.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R12-22 20002-GM | ○ | ○ | ○○ | ○ | 2.00 | 4.5 | 21.70 | 5.70 | 12.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R12-22 25002-GM | ○ | ○ | ○○ | ○ | 2.50 | 4.5 | 21.70 | 5.70 | 12.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R12-22 30002-GM | ○ | ○ | ○○ | ○ | 3.00 | 4.5 | 21.70 | 5.70 | 12.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R12-22 40002-GM | ○ | ○ | ○○ | ○ | 4.00 | 4.5 | 21.70 | 5.70 | 12.00 | 3 | 0.000 | 0.020 | 50000 |
| 327R12-28 15001-GMM | ○ | ○ | ○○ | ○ | 1.50 | 6.5 | 27.70 | 6.45 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R12-28 20002-GMM | ○ | ○ | ○○ | ○ | 2.00 | 6.4 | 27.70 | 6.40 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R12-28 25002-GMM | ○ | ○ | ○○ | ○ | 2.50 | 6.5 | 27.70 | 6.25 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R12-28 30002-GMM | ○ | ○ | ○○ | ○ | 3.00 | 6.5 | 27.70 | 6.25 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R12-28 40002-GMM | ○ | ○ | ○○ | ○ | 4.00 | 6.5 | 27.70 | 6.25 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R12-2830002-GLM | ○ | ○ | ○○ | ○ | 3.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | -0.010 | 0.010 | 50000 |
| 327R12-2840002-GLM | ○ | ○ | ○○ | ○ | 4.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | -0.010 | 0.010 | 50000 |
| 327R12-2850002-GLM | ○ | ○ | ○○ | ○ | 5.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | -0.010 | 0.010 | 50000 |
| 327R12-2850002-GMM | ○ | ○ | ○○ | ○ | 5.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R12-2860002-GLM | ○ | ○ | ○○ | ○ | 6.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | -0.010 | 0.010 | 50000 |
| 327R12-2860002-GMM | ○ | ○ | ○○ | ○ | 6.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R14-28 15000-GM | ○ | ○ | ○○ | ○ | 1.50 | 6.5 | 27.70 | 6.50 | 14.30 | 3 | 0.000 | 0.020 | 50000 |
| 327R14-28 20002-GM | ○ | ○ | ○○ | ○ | 2.00 | 6.5 | 27.70 | 6.50 | 14.30 | 3 | 0.000 | 0.020 | 50000 |
