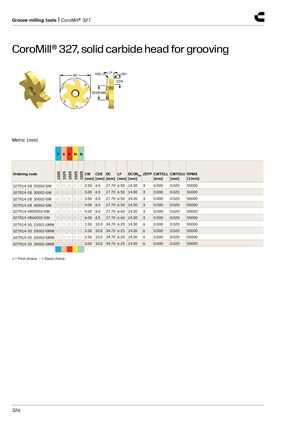

CoroMill® 327, solid carbide head for grooving
2
3
DC 1
4
RE2 LF RE1
CDX 6 DCON MS 5
Metric (mm)
| P | S | K | M | N | |||||||||||
| Ordering code | 1025 | 1025 | 1025 | 1025 | 1025 | CW [mm] | CDX [mm] | DC [mm] | LF [mm] | DCONMS [mm] | ZEFP | CWTOLL [mm] | CWTOLU [mm] | RPMX [1/min] | |
| 327R14-28 25002-GM | ○ | ○ | ○ | ○ | ○ | 2.50 | 6.5 | 27.70 | 6.50 | 14.30 | 3 | 0.000 | 0.020 | 50000 | |
| 327R14-28 30002-GM | ○ | ○ | ○ | ○ | ○ | 3.00 | 6.5 | 27.70 | 6.50 | 14.30 | 3 | 0.000 | 0.020 | 50000 | |
| 327R14-28 35002-GM | ○ | ○ | ○ | ○ | ○ | 3.50 | 6.5 | 27.70 | 6.50 | 14.30 | 3 | 0.000 | 0.020 | 50000 | |
| 327R14-28 40002-GM | ○ | ○ | ○ | ○ | ○ | 4.00 | 6.5 | 27.70 | 6.50 | 14.30 | 3 | 0.000 | 0.020 | 50000 | |
| 327R14-2850002-GM | ○ | ○ | ○ | ○ | ○ | 5.00 | 6.5 | 27.70 | 6.60 | 14.30 | 3 | 0.000 | 0.020 | 50000 | |
| 327R14-2860002-GM | ○ | ○ | ○ | ○ | ○ | 6.00 | 6.5 | 27.70 | 6.60 | 14.30 | 3 | 0.000 | 0.020 | 50000 | |
| 327R14-35 15001-GMM | ○ | ○ | ○ | ○ | ○ | 1.50 | 10.0 | 34.70 | 6.25 | 14.30 | 6 | 0.000 | 0.020 | 50000 | |
| 327R14-35 20002-GMM | ○ | ○ | ○ | ○ | ○ | 2.00 | 10.0 | 34.70 | 6.25 | 14.30 | 6 | 0.000 | 0.020 | 50000 | |
| 327R14-35 25002-GMM | ○ | ○ | ○ | ○ | ○ | 2.50 | 10.0 | 34.70 | 6.25 | 14.30 | 6 | 0.000 | 0.020 | 50000 | |
| 327R14-35 30002-GMM | ○ | ○ | ○ | ○ | ○ | 3.00 | 10.0 | 34.70 | 6.25 | 14.30 | 6 | 0.000 | 0.020 | 50000 |
- = First choice = Good choice
