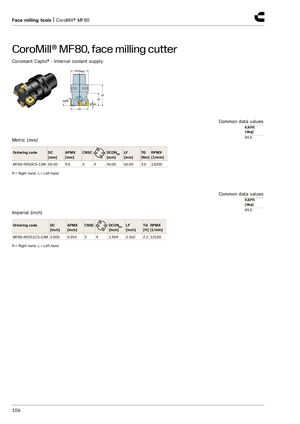

CoroMill® MF80, face milling cutter
Coromant Capto® - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 89.5
| Ordering code | DC | APMX | CNSC | DCONMS | LF | TQ | RPMX | |
| [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | |||
| MF80-R050C5-13M | 50.00 | 9.0 | 3 | 4 | 50.00 | 60.00 | 3.0 | 13200 |
R = Right hand, L = Left hand
Common data values
KAPR [deg] Imperial (inch) 89.5
| Ordering code | DC [inch] | APMX [inch] | CNSC DCONMS [inch] | LF [inch] | TQ [ft] | RPMX [1/min] |
| MF80-AR051C5-13M | 2.000 | 0.354 | 3 4 1.969 | 2.362 | 2.2 | 13100 |
R = Right hand, L = Left hand
