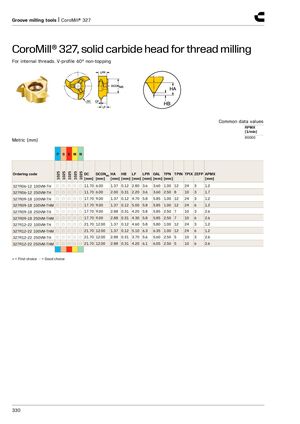

CoroMill® 327, solid carbide head for thread milling
For internal threads. V-profile 60° non-topping
Common data values
RPMX [1/min] Metric (mm) 80000
| P | S | K | M | N | |||||||||||||
| Ordering code | 1025 | 1025 | 1025 | 1025 | 1025 | DC [mm] | DCONMS [mm] | HA [mm] | HB [mm] | LF [mm] | LPR [mm] | OAL [mm] | TPN [mm] | TPIN | TPIX | ZEFP | APMX [mm] |
| 327R06-12 100VM-TH | ○ | ○ | ○ | ○ | ○ | 11.70 | 6.00 | 1.37 | 0.12 | 2.80 | 3.6 | 3.60 | 1.00 | 12 | 24 | 3 | 1.2 |
| 327R06-12 250VM-TH | ○ | ○ | ○ | ○ | ○ | 11.70 | 6.00 | 2.00 | 0.31 | 2.20 | 3.6 | 3.60 | 2.50 | 8 | 10 | 3 | 1.7 |
| 327R09-18 100VM-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 1.37 | 0.12 | 4.70 | 5.8 | 5.85 | 1.00 | 12 | 24 | 3 | 1.2 |
| 327R09-18 100VM-THM | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 1.37 | 0.12 | 5.00 | 5.8 | 5.85 | 1.00 | 12 | 24 | 6 | 1.2 |
| 327R09-18 250VM-TH | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 2.88 | 0.31 | 4.20 | 5.8 | 5.85 | 2.50 | 7 | 10 | 3 | 2.6 |
| 327R09-18 250VM-THM | ○ | ○ | ○ | ○ | ○ | 17.70 | 9.00 | 2.88 | 0.31 | 4.30 | 5.8 | 5.85 | 2.50 | 7 | 10 | 6 | 2.6 |
| 327R12-22 100VM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 1.37 | 0.12 | 4.60 | 5.8 | 5.80 | 1.00 | 12 | 24 | 3 | 1.2 |
| 327R12-22 100VM-THM | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 1.37 | 0.12 | 5.10 | 6.3 | 6.35 | 1.00 | 12 | 24 | 6 | 1.2 |
| 327R12-22 250VM-TH | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 2.88 | 0.31 | 3.70 | 5.6 | 5.60 | 2.50 | 5 | 10 | 3 | 2.6 |
| 327R12-22 250VM-THM | ○ | ○ | ○ | ○ | ○ | 21.70 | 12.00 | 2.88 | 0.31 | 4.20 | 6.1 | 6.05 | 2.50 | 5 | 10 | 6 | 2.6 |
- = First choice = Good choice
