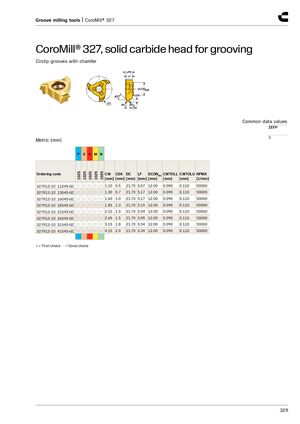

CoroMill® 327, solid carbide head for grooving
Circlip grooves with chamfer
Common data values
ZEFP Metric (mm) 3
| P | S | K | M | N | ||||||||||
| Ordering code | 1025 | 1025 | 1025 | 1025 | 1025 | CW [mm] | CDX [mm] | DC [mm] | LF [mm] | DCONM [mm] | S CWTOLL [mm] | CWTOLU [mm] | RPMX [1/min] | |
| 327R12-22 11045-GC | ○ | ○ | ○ | ○ | ○ | 1.10 | 0.5 | 21.70 | 5.07 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 13045-GC | ○ | ○ | ○ | ○ | ○ | 1.30 | 0.7 | 21.70 | 5.17 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 16045-GC | ○ | ○ | ○ | ○ | ○ | 1.60 | 1.0 | 21.70 | 5.17 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 18545-GC | ○ | ○ | ○ | ○ | ○ | 1.85 | 1.3 | 21.70 | 5.19 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 21545-GC | ○ | ○ | ○ | ○ | ○ | 2.15 | 1.5 | 21.70 | 5.34 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 26545-GC | ○ | ○ | ○ | ○ | ○ | 2.65 | 1.5 | 21.70 | 5.09 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 31545-GC | ○ | ○ | ○ | ○ | ○ | 3.15 | 1.8 | 21.70 | 5.34 | 12.00 | 0.090 | 0.110 | 50000 | |
| 327R12-22 41545-GC | ○ | ○ | ○ | ○ | ○ | 4.15 | 2.0 | 21.70 | 5.34 | 12.00 | 0.090 | 0.110 | 50000 |
- = First choice = Good choice
