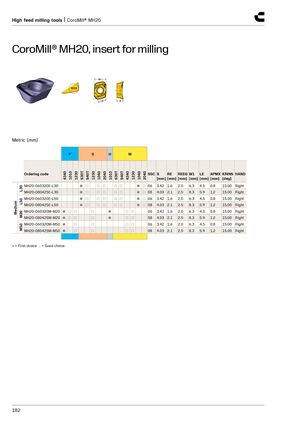

CoroMill® MH20, insert for milling
Metric (mm)
| P | S | H | M | ||||||||||||
| Ordering code | 4340 1010 1230 S30T | S40T 1230 1040 | 2040 1010 S30T | S40T 4340 1230 | 1040 | 2040 SSC | S [mm] | RE [mm | ] REEQ [mm] | W1 [mm | ] LE [mm | ] APMX [mm] | KRINS [deg] | HAND | |
| 30 | MH20-060320E-L30 | ● | ○ ○ | ○ ○ | ○ | ● | ○06 | 3.42 | 1.6 | 2.0 | 6.3 | 4.5 | 0.8 | 15.00 | Right |
| L | MH20-080425E-L30 | ● | ○ ○ | ○ ○ | ○ | ● | ○08 | 4.03 | 2.1 | 2.5 | 8.3 | 5.9 | 1.2 | 15.00 | Right |
| 50 | MH20-060320E-L50 | ● | ○ ○ | ○ ○ | ○ | ● | ○06 | 3.42 | 1.6 | 2.0 | 6.3 | 4.5 | 0.8 | 15.00 | Right |
| dium L | MH20-080425E-L50 | ● | ○ ○ | ○ ○ | ○ | ● | ○08 | 4.03 | 2.1 | 2.5 | 8.3 | 5.9 | 1.2 | 15.00 | Right |
| Me 20 | MH20-060320M-M20 | ●○○ | ○ | ● | ○○ | 06 | 3.42 | 1.6 | 2.0 | 6.3 | 4.5 | 0.8 | 15.00 | Right | |
| M | MH20-080425M-M20 | ●○○ | ○ | ● | ○○ | 08 | 4.03 | 2.1 | 2.5 | 8.3 | 5.9 | 1.2 | 15.00 | Right | |
| 50 | MH20-060320M-M50 | ● ○ | ○ | ○○ | 06 | 3.42 | 1.6 | 2.0 | 6.3 | 4.5 | 0.8 | 15.00 | Right | ||
| M | MH20-080425M-M50 | ● ○ | ○ | ○○ | 08 | 4.03 | 2.1 | 2.5 | 8.3 | 5.9 | 1.2 | 15.00 | Right |
- = First choice ○ = Good choice
