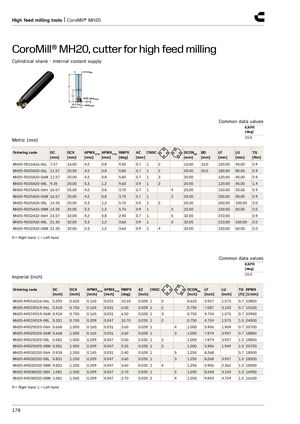

CoroMill® MH20, cutter for high feed milling
Cylindrical shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 15.0
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFF [mm] | W RMPX [deg] | AZ [mm] | CNS | C | DCONMS [mm] | BD [mm] | LF [mm] | LU [mm] | TQ [Nm] | |
| MH20-R016A16-06L | 7.57 | 16.00 | 4.2 | 0.8 | 9.50 | 0.7 | 1 | 2 | 16.00 | 16.0 | 100.00 | 40.00 | 0.9 | |
| MH20-R020A20-06L | 11.57 | 20.00 | 4.2 | 0.8 | 5.80 | 0.7 | 1 | 2 | 20.00 | 20.0 | 180.00 | 80.00 | 0.9 | |
| MH20-R020A20-06M | 11.57 | 20.00 | 4.2 | 0.8 | 5.80 | 0.7 | 1 | 3 | 20.00 | 120.00 | 40.00 | 0.9 | ||
| MH20-R020A20-08L | 9.35 | 20.00 | 5.3 | 1.2 | 9.60 | 0.9 | 1 | 2 | 20.00 | 120.00 | 40.00 | 1.4 | ||
| MH20-R025A25-06H | 16.57 | 25.00 | 4.2 | 0.8 | 3.70 | 0.7 | 1 | 4 | 25.00 | 150.00 | 50.00 | 0.9 | ||
| MH20-R025A25-06M | 16.57 | 25.00 | 4.2 | 0.8 | 3.70 | 0.7 | 1 | 3 | 25.00 | 200.00 | 80.00 | 0.9 | ||
| MH20-R025A25-08L | 14.35 | 25.00 | 5.3 | 1.2 | 5.70 | 0.9 | 1 | 2 | 25.00 | 200.00 | 100.00 | 2.0 | ||
| MH20-R025A25-08M | 14.35 | 25.00 | 5.3 | 1.2 | 5.70 | 0.9 | 1 | 3 | 25.00 | 150.00 | 50.00 | 2.0 | ||
| MH20-R032A32-06H | 23.57 | 32.00 | 4.2 | 0.8 | 2.40 | 0.7 | 1 | 5 | 32.00 | 210.00 | 0.9 | |||
| MH20-R032A32-08L | 21.35 | 32.00 | 5.3 | 1.2 | 3.60 | 0.9 | 1 | 3 | 32.00 | 210.00 | 100.00 | 2.0 | ||
| MH20-R032A32-08M | 21.35 | 32.00 | 5.3 | 1.2 | 3.60 | 0.9 | 1 | 4 | 32.00 | 150.00 | 60.00 | 2.0 |
R = Right hand, L = Left hand
| Commo | n data values | ||||||||||||
| mperial (inch) | KAPR [deg] 15.0 | ||||||||||||
| Ordering code | DC [inch] | DCX [inch] | APMXEFW [inch] | APMXFF [inch] | W RMPX [deg] | AZ [inch] | CNSC | DCONMS [inch] | LF [inch] | LU [inch] | TQ [ft] RPMX [1/min] | ||
| MH20-AR016O16-06L | 0.293 | 0.625 | 0.165 | 0.031 | 10.10 | 0.028 | 1 | 2 | 0.625 | 3.937 | 1.575 | 0.7 23800 | |
| MH20-AR019O19-06L | 0.418 | 0.750 | 0.165 | 0.031 | 6.50 | 0.028 | 1 | 2 | 0.750 | 7.087 | 3.150 | 0.7 15100 | |
| MH20-AR019O19-06M | 0.418 | 0.750 | 0.165 | 0.031 | 6.50 | 0.028 | 1 | 3 | 0.750 | 4.724 | 1.575 | 0.7 23900 | |
| MH20-AR019O19-08L | 0.331 | 0.750 | 0.209 | 0.047 | 10.70 | 0.035 | 1 | 2 | 0.750 | 4.724 | 1.575 | 1.0 24000 | |
| MH20-AR025O25-06H | 0.668 | 1.000 | 0.165 | 0.031 | 3.60 | 0.028 | 1 | 4 | 1.000 | 5.906 | 1.969 | 0.7 20700 | |
| MH20-AR025O25-06M | 0.668 | 1.000 | 0.165 | 0.031 | 3.60 | 0.028 | 1 | 3 | 1.000 | 7.874 | 3.937 | 0.7 18800 | |
| MH20-AR025O25-08L | 0.581 | 1.000 | 0.209 | 0.047 | 5.50 | 0.035 | 1 | 2 | 1.000 | 7.874 | 3.937 | 1.5 18800 | |
| MH20-AR025O25-08M | 0.581 | 1.000 | 0.209 | 0.047 | 5.50 | 0.035 | 1 | 3 | 1.000 | 5.906 | 1.969 | 1.5 20700 | |
| MH20-AR032O32-06H | 0.918 | 1.250 | 0.165 | 0.031 | 2.40 | 0.028 | 1 | 5 | 1.250 | 8.268 | 0.7 18500 | ||
| MH20-AR032O32-08L | 0.831 | 1.250 | 0.209 | 0.047 | 3.60 | 0.035 | 1 | 3 | 1.250 | 8.268 | 3.937 | 1.5 18500 | |
| MH20-AR032O32-08M | 0.831 | 1.250 | 0.209 | 0.047 | 3.60 | 0.035 | 1 | 4 | 1.250 | 5.906 | 2.362 | 1.5 18500 | |
| MH20-AR038O32-08H | 1.081 | 1.500 | 0.209 | 0.047 | 2.70 | 0.035 | 1 | 5 | 1.250 | 8.268 | 3.150 | 1.5 16900 | |
| MH20-AR038O32-08M | 1.081 | 1.500 | 0.209 | 0.047 | 2.70 | 0.035 | 2 | 4 | 1.250 | 9.843 | 4.724 | 1.5 16100 |
