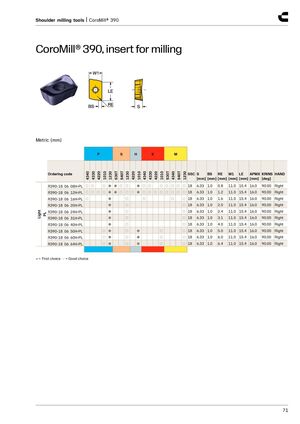

Shoulder milling tools | CoroMill® 390 CoroMill® 390, insert for milling Metric (mm) P S H K M S30T S40T S30T S40T 4340 4330 4220 1010 1230 1230 4220 1010 4340 4330 4220 1010 4340 1230 Ordering code SSC S BS RE W1 LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] R390-18 06 08H-PL ○ ○ ○ ● ● ○ ○ ● ○ ○ ○ ○ ○ ○ ○ 18 6.33 1.0 0.8 11.0 15.4 16.0 90.00 Right R390-18 06 12H-PL ○ ○ ○ ○ ● ● ○ ○ ○ ● ○ ○ ○ ○ ○ ○ ○ ○ 18 6.33 1.0 1.2 11.0 15.4 16.0 90.00 Right R390-18 06 16H-PL ○ ● ○ ○ ○ ○ 18 6.33 1.0 1.6 11.0 15.4 16.0 90.00 Right R390-18 06 20H-PL ● ○ ○ 18 6.33 1.0 2.0 11.0 15.4 16.0 90.00 Right R390-18 06 24H-PL ● ○ ○ 18 6.33 1.0 2.4 11.0 15.4 16.0 90.00 Right Light PL R390-18 06 31H-PL ● ○ ○ 18 6.33 1.0 3.1 11.0 15.4 16.0 90.00 Right R390-18 06 40H-PL ● ○ ○ 18 6.33 1.0 4.0 11.0 15.4 16.0 90.00 Right R390-18 06 50H-PL ○● ○ ● ○ ○ 18 6.33 1.0 5.0 11.0 15.4 16.0 90.00 Right R390-18 06 60H-PL ○● ○ ● ○ ○ 18 6.33 1.0 6.0 11.0 15.4 16.0 90.00 Right R390-18 06 64H-PL ○● ○ ● ○ ○ 18 6.33 1.0 6.4 11.0 15.4 16.0 90.00 Right ● = First choice ○ = Good choice 71
