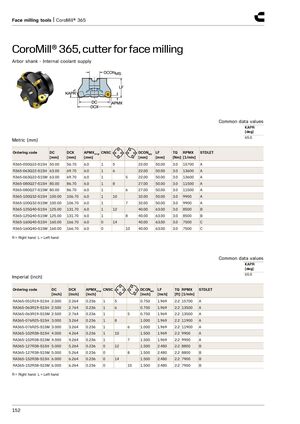

CoroMill® 365, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 65.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| R365-050Q22-S15H | 50.00 | 56.70 | 6.0 | 1 | 5 | 22.00 | 50.00 | 3.0 | 15700 | A | |
| R365-063Q22-S15H | 63.00 | 69.70 | 6.0 | 1 | 6 | 22.00 | 50.00 | 3.0 | 13600 | A | |
| R365-063Q22-S15M | 63.00 | 69.70 | 6.0 | 1 | 5 | 22.00 | 50.00 | 3.0 | 13600 | A | |
| R365-080Q27-S15H | 80.00 | 86.70 | 6.0 | 1 | 8 | 27.00 | 50.00 | 3.0 | 11500 | A | |
| R365-080Q27-S15M | 80.00 | 86.70 | 6.0 | 1 | 6 | 27.00 | 50.00 | 3.0 | 11500 | A | |
| R365-100Q32-S15H | 100.00 | 106.70 | 6.0 | 1 | 10 | 32.00 | 50.00 | 3.0 | 9900 | A | |
| R365-100Q32-S15M | 100.00 | 106.70 | 6.0 | 1 | 7 | 32.00 | 50.00 | 3.0 | 9900 | A | |
| R365-125Q40-S15H | 125.00 | 131.70 | 6.0 | 1 | 12 | 40.00 | 63.00 | 3.0 | 8500 | B | |
| R365-125Q40-S15M | 125.00 | 131.70 | 6.0 | 1 | 8 | 40.00 | 63.00 | 3.0 | 8500 | B | |
| R365-160Q40-S15H | 160.00 | 166.70 | 6.0 | 0 | 14 | 40.00 | 63.00 | 3.0 | 7500 | C | |
| R365-160Q40-S15M | 160.00 | 166.70 | 6.0 | 0 | 10 | 40.00 | 63.00 | 3.0 | 7500 | C |
R = Right hand, L = Left hand
Common data values
KAPR [deg] Imperial (inch) 65.0
| Ordering code | DC [inch] | DCX [inch] | APMXFFW [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | ||
| RA365-051R19-S15H | 2.000 | 2.264 | 0.236 | 1 | 5 | 0.750 | 1.969 | 2.2 15700 | A | |
| RA365-063R19-S15H | 2.500 | 2.764 | 0.236 | 1 | 6 | 0.750 | 1.969 | 2.2 13500 | A | |
| RA365-063R19-S15M | 2.500 | 2.764 | 0.236 | 1 | 5 | 0.750 | 1.969 | 2.2 13500 | A | |
| RA365-076R25-S15H | 3.000 | 3.264 | 0.236 | 1 | 8 | 1.000 | 1.969 | 2.2 11900 | A | |
| RA365-076R25-S15M | 3.000 | 3.264 | 0.236 | 1 | 6 | 1.000 | 1.969 | 2.2 11900 | A | |
| RA365-102R38-S15H | 4.000 | 4.264 | 0.236 | 1 | 10 | 1.500 | 1.969 | 2.2 9900 | A | |
| RA365-102R38-S15M | 4.000 | 4.264 | 0.236 | 1 | 7 | 1.500 | 1.969 | 2.2 9900 | A | |
| RA365-127R38-S15H | 5.000 | 5.264 | 0.236 | 0 | 12 | 1.500 | 2.480 | 2.2 8800 | B | |
| RA365-127R38-S15M | 5.000 | 5.264 | 0.236 | 0 | 8 | 1.500 | 2.480 | 2.2 8800 | B | |
| RA365-152R38-S15H | 6.000 | 6.264 | 0.236 | 0 | 14 | 1.500 | 2.480 | 2.2 7900 | B | |
| RA365-152R38-S15M | 6.000 | 6.264 | 0.236 | 0 | 10 | 1.500 | 2.480 | 2.2 7900 | B |
R = Right hand, L = Left hand
