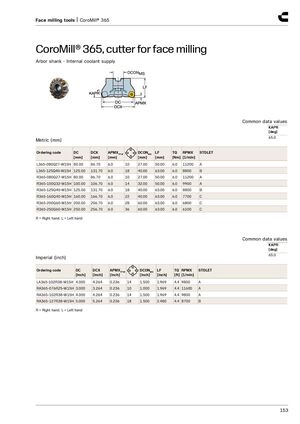

CoroMill® 365, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 65.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |
| L365-080Q27-W15H | 80.00 | 86.70 | 6.0 | 10 | 27.00 | 50.00 | 6.0 | 11200 | A |
| L365-125Q40-W15H | 125.00 | 131.70 | 6.0 | 18 | 40.00 | 63.00 | 6.0 | 8800 | B |
| R365-080Q27-W15H | 80.00 | 86.70 | 6.0 | 10 | 27.00 | 50.00 | 6.0 | 11200 | A |
| R365-100Q32-W15H | 100.00 | 106.70 | 6.0 | 14 | 32.00 | 50.00 | 6.0 | 9900 | A |
| R365-125Q40-W15H | 125.00 | 131.70 | 6.0 | 18 | 40.00 | 63.00 | 6.0 | 8800 | B |
| R365-160Q40-W15H | 160.00 | 166.70 | 6.0 | 22 | 40.00 | 63.00 | 6.0 | 7700 | C |
| R365-200Q60-W15H | 200.00 | 206.70 | 6.0 | 28 | 60.00 | 63.00 | 6.0 | 6800 | C |
| R365-250Q60-W15H | 250.00 | 256.70 | 6.0 | 36 | 60.00 | 63.00 | 6.0 | 6100 | C |
R = Right hand, L = Left hand
Common data values
KAPR [deg] Imperial (inch) 65.0
| Ordering code | DC [inch] | DCX [inch] | APMXFFW [inch] | DCONMS [inch] | LF [inch] | TQ [ft] | RPMX [1/min] | STDLET | |
| LA365-102R38-W15H | 4.000 | 4.264 | 0.236 | 14 | 1.500 | 1.969 | 4.4 | 9800 | A |
| RA365-076R25-W15H | 3.000 | 3.264 | 0.236 | 10 | 1.000 | 1.969 | 4.4 | 11600 | A |
| RA365-102R38-W15H | 4.000 | 4.264 | 0.236 | 14 | 1.500 | 1.969 | 4.4 | 9800 | A |
| RA365-127R38-W15H | 5.000 | 5.264 | 0.236 | 18 | 1.500 | 2.480 | 4.4 | 8700 | B |
R = Right hand, L = Left hand
