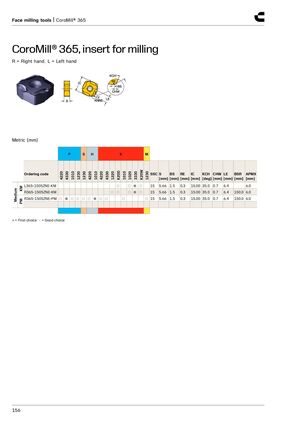

Face milling tools | CoroMill® 365 CoroMill® 365, insert for milling R = Right hand, L = Left hand Metric (mm) P S H K M K20W K20D 4220 4330 1010 1230 1230 4220 1010 4220 4330 1220 1010 1020 3330 1230 Ordering code SSC S BS RE IC KCH CHW LE BSR APMX [mm] [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] L365-1505ZNE-KM ○ ○●○ 15 5.66 1.5 0.3 15.00 35.0 0.7 6.4 6.0 KM ○○ ○●○ Medium R365-1505ZNE-KM 15 5.66 1.5 0.3 15.00 35.0 0.7 6.4 150.0 6.0 R365-1505ZNE-PM ○●○○○○●○○ ○ ○ 15 5.66 1.5 0.3 15.00 35.0 0.7 6.4 150.0 6.0 PM ● = First choice ○ = Good choice 156
